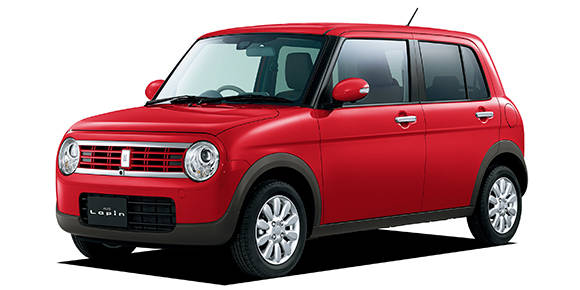

SUZUKI ALTO LAPIN F LIMITED

SUZUKI ALTO LAPIN

HE33S · F LIMITED

Description

Modification: F LIMITED
Chassis ID: HE33S
Dates releasing: 2016.12~
Base price, ¥: DBA-HE33S
Body size: 3395x1475x1525
Interior (LxWxH): 2020x1295x1240
Wheelbase: 2460
Track f/r: 1295mm/1300mm
Full weight, kg: 680
Body type: Kei car
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: R06A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 64.0x68.2
Engine size, cc: 658
Compression ratio: 11.5
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 52ps(38kW)/6500rpm
Max torque, Nm/rpm: 6.4kg m(63N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 27 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 2.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R14 75S
Rear wheel: 155/65R14 75S
Min turn diameter, m: 4.4

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
3.980~0.553	—	—	—	—	—	—	—	—	3.747

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
