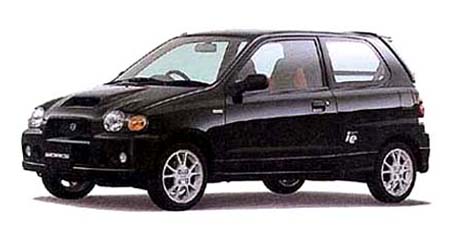

SUZUKI ALTO WORKS IE

SUZUKI ALTO WORKS

HA12S · IE

Description

Modification: IE
Chassis ID: HA12S
Dates releasing: 1998.10~
Base price, ¥: GF-HA12S
Body size: 3395x1475x1450
Interior (LxWxH): 1700x1220x1200
Wheelbase: 2360
Track f/r: 1305mm/1290mm
Full weight, kg: 680
Body type: Kei car
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ◯
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: F6A
Type: water cooling inline 3 cylinder SOHC 6-valves IC-turbo
Bore x stroke, mm: 65.0x66.0
Engine size, cc: 657
Compression ratio: 9.2
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 60ps(44kW)/6000rpm
Max torque, Nm/rpm: 8.5kg m(83N m)/4000rpm
Supercharger: IC turbo
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 155/55R14 69V
Rear wheel: 155/55R14 69V
Min turn diameter, m: 4.2

Gearbox

Number of stages: 3AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.659	1.530	1.000	—	—	—	—	—	2.129

Available colors

black / Other blackwhite / Superior WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
