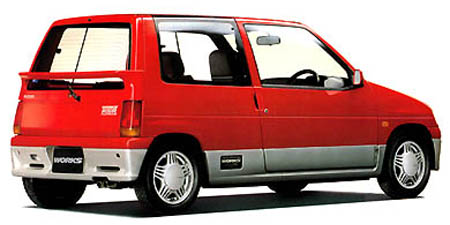

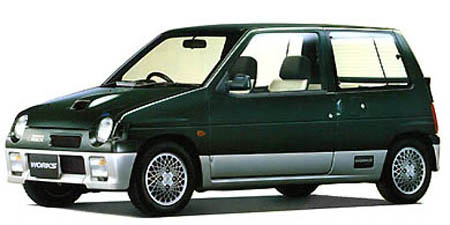

SUZUKI ALTO WORKS S/X

SUZUKI ALTO WORKS

CL11V · S/X

Description

Modification: S/X
Chassis ID: CL11V
Dates releasing: 1988.9~
Base price, ¥: M-CL11V
Body size: 3195x1395x1385
Interior (LxWxH): ----x----x----
Wheelbase: 2335
Track f/r: 1220mm/1200mm
Full weight, kg: 600
Body type: Kei car
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 12 inches standard
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: F5B
Type: water cooling inline 3 cylinder SOHCIC-turbo
Bore x stroke, mm: 65.0x55.0
Engine size, cc: 547
Compression ratio: 8.1
Fuel injection: EPi(電子制御燃料噴射)
Max power, hp/rpm: 58ps(43kW)/6500rpm
Max torque, Nm/rpm: 7.4kg m(73N m)/4000rpm
Supercharger: IC turbo
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: I.T.L(アイソレーティッドトレーリング
Front brake: disk
Rear brake: Drum
Front wheel: 155/70R12 73H
Rear wheel: 155/70R12 73H
Min turn diameter, m: 4.6

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.100	2.470	1.608	1.093	0.966	—	—	—	4.000

Available colors

blackwhite / Superior WhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
