JDM Vehicle Catalog

Vehicle Specs

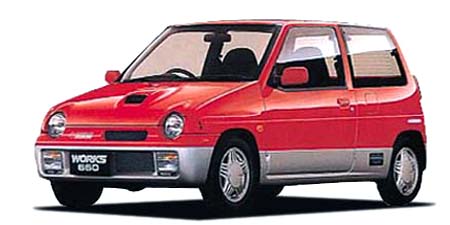

SUZUKI ALTO WORKS TURBO I.E.

SUZUKI ALTO WORKS

CS22S · TURBO I.E.

Description

Modification: TURBO I.E.
Chassis ID: CS22S
Dates releasing: 1991.9~
Base price, ¥: E-CS22S
Body size: 3295x1395x1400
Interior (LxWxH): 1700x1200x1170
Wheelbase: 2335
Track f/r: 1220mm/1200mm
Full weight, kg: 700
Body type: Kei car
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 12 inches standard
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: F6A
Type: water cooling inline 3 cylinder SOHC 6-valves IC-turbo
Bore x stroke, mm: 65.0x66.0
Engine size, cc: 657
Compression ratio: 8.1
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 61ps(45kW)/6000rpm
Max torque, Nm/rpm: 9.2kg m(90.2N m)/3500rpm
Supercharger: IC turbo
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: I.T.L(アイソレーティッドトレーリング
Front brake: disk
Rear brake: Drum
Front wheel: 155/70R12 73H
Rear wheel: 155/70R12 73H
Min turn diameter, m: 4.6

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.818	2.277	1.521	1.030	0.837	—	—	—	3.583

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
