JDM Vehicle Catalog

Vehicle Specs

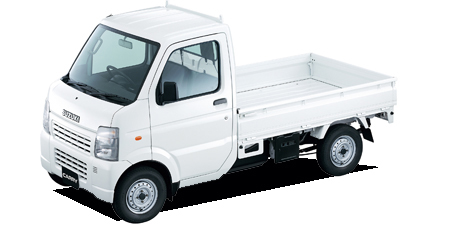

SUZUKI CARRYTRACK KC

SUZUKI CARRYTRACK

DA63T · KC

Description

Modification: KC
Chassis ID: DA63T
Dates releasing: 2005.11~
Base price, ¥: EBD-DA63T
Body size: 3395x1475x1790
Interior (LxWxH): ----x----x----
Wheelbase: 2350
Track f/r: 1305mm/1290mm
Full weight, kg: 760
Body type: Kei truck
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: ×
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: K6A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 68.0x60.4
Engine size, cc: 658
Compression ratio: 10.5
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 48ps(35kW)/5500rpm
Max torque, Nm/rpm: 6.3kg m(62N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: リーフスプリング
Front brake: disk
Rear brake: Drum
Front wheel: 145R12-6PR LT
Rear wheel: 145R12-6PR LT
Min turn diameter, m: 3.8

Gearbox

Number of stages: 3AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.727	1.536	1.000	—	—	—	—	—	2.222

Available colors

blackwhite / Superior WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
