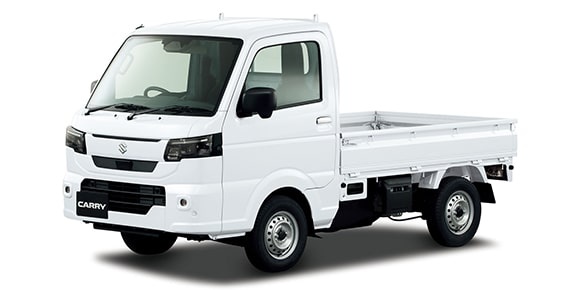

SUZUKI CARRYTRACK KX

SUZUKI CARRYTRACK

DA16T · KX

Description

Modification: KX
Chassis ID: DA16T
Dates releasing: 2026.1~
Base price, ¥: 3BD-DA16T
Body size: 3395x1475x1765
Interior (LxWxH): ----x----x----
Wheelbase: 1905
Track f/r: 1305mm/1290mm
Full weight, kg: 790
Body type: Kei truck
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ESP

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: R06A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 64.0x68.2
Engine size, cc: 658
Compression ratio: 11.3
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 50ps(37kW)/6200rpm
Max torque, Nm/rpm: 6.0kg m(59N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 34 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: リーフスプリング
Front brake: disk
Rear brake: Drum
Front wheel: 145/80R12
Rear wheel: 145/80R12
Min turn diameter, m: 3.6

Gearbox

Number of stages: 4AT

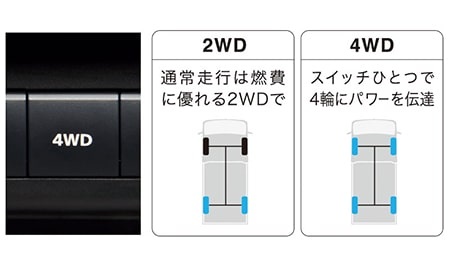

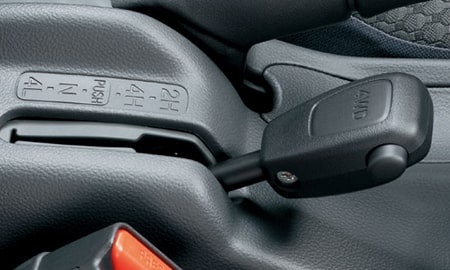

Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.875	1.568	1.000	0.696	—	—	—	—	2.300

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyan / Other Dark cyanPearlGold / Other Gold
