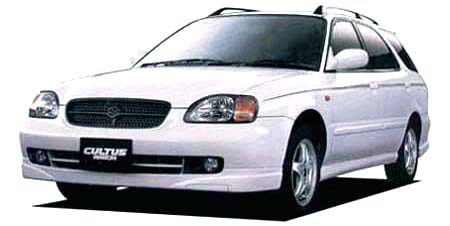

SUZUKI CULTUS WAGON TR LIMITED II

SUZUKI CULTUS WAGON

GD31W · TR LIMITED II

Description

Modification: TR LIMITED II
Chassis ID: GD31W
Dates releasing: 1998.12~
Base price, ¥: GF-GD31W
Body size: 4375x1690x1460
Interior (LxWxH): 1790x1380x1155
Wheelbase: 2480
Track f/r: 1440mm/1435mm
Full weight, kg: 1110
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: G16A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x90.0
Engine size, cc: 1590
Compression ratio: 9.8
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 115ps(85kW)/6000rpm
Max torque, Nm/rpm: 14.9kg m(146.1N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 48 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: McPherson Strut type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/60R14 82H
Rear wheel: 185/60R14 82H
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.807	1.479	1.000	0.734	—	—	—	—	2.769

Available colors

black / Other blackwhite / Superior WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
