JDM Vehicle Catalog

Vehicle Specs

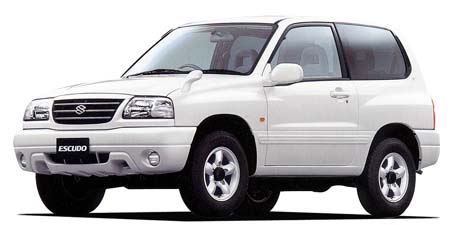

SUZUKI ESCUDO 1.6

SUZUKI ESCUDO

TA02W · 1.6

Description

Modification: 1.6
Chassis ID: TA02W
Dates releasing: 2000.4~
Base price, ¥: LA-TA02W
Body size: 3810x1695x1685
Interior (LxWxH): 1645x1335x1250
Wheelbase: 2200
Track f/r: 1460mm/1460mm
Full weight, kg: 1180
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: G16A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x90.0
Engine size, cc: 1590
Compression ratio: 9.5
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 107ps(79kW)/6000rpm
Max torque, Nm/rpm: 14.7kg m(144.2N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 56 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: 5リンクリジッ DOOR クスル type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/80R15 96S
Rear wheel: 195/80R15 96S
Min turn diameter, m: 4.7

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.730	—	—	—	—	2.703

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlue / Other BlueDark cyanPearl / Other PearlGold
