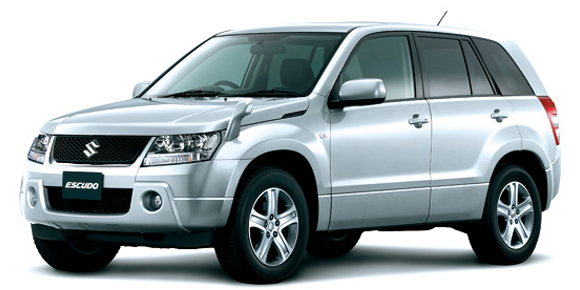

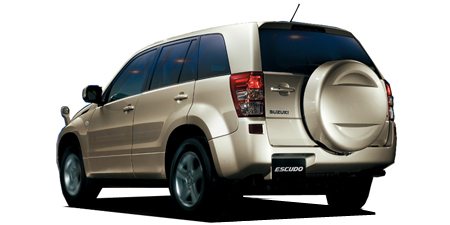

SUZUKI ESCUDO 2.0XG

SUZUKI ESCUDO

TD54W · 2.0XG

Description

Modification: 2.0XG
Chassis ID: TD54W
Dates releasing: 2006.6~
Base price, ¥: CBA-TD54W
Body size: 4390x1810x1695
Interior (LxWxH): 1955x1490x1230
Wheelbase: 2640
Track f/r: 1540mm/1560mm
Full weight, kg: 1530
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓

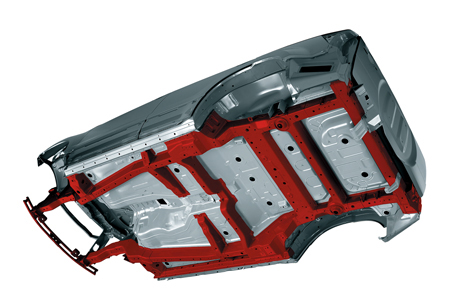

Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×

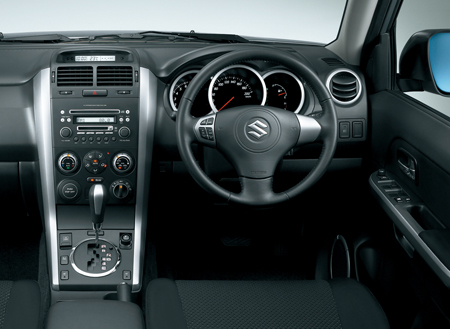

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard

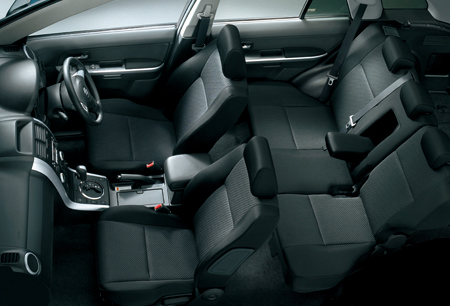

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: J20A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 84.0x90.0
Engine size, cc: 1995
Compression ratio: 10.5
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 145ps(107kW)/6000rpm
Max torque, Nm/rpm: 19.7kg m(193N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 66 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 225/65R17 101S
Rear wheel: 225/65R17 101S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

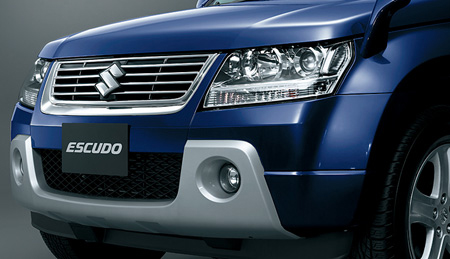

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD

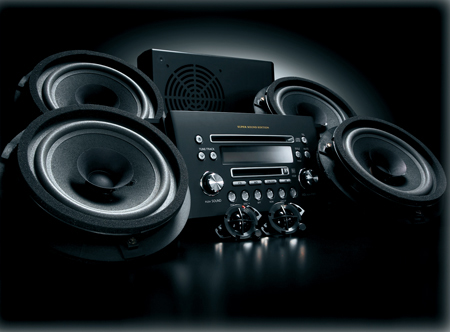

Audio: AM/FM radio with MD player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.550	2.357	1.695	1.242	1.000	—	—	—	4.436

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearl / Pearl WhiteGold / Other Gold
