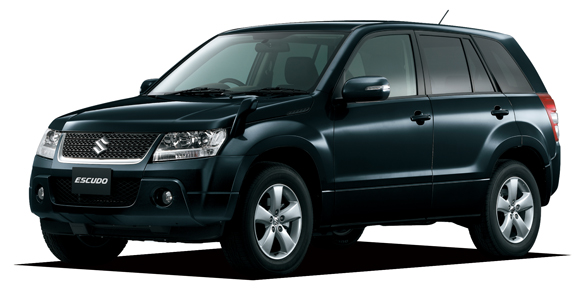

SUZUKI ESCUDO 2.4XE

SUZUKI ESCUDO

TDA4W · 2.4XE

Description

Modification: 2.4XE
Chassis ID: TDA4W
Dates releasing: 2008.6~
Base price, ¥: CBA-TDA4W
Body size: 4420x1810x1695
Interior (LxWxH): 1955x1490x1230
Wheelbase: 2640
Track f/r: 1540mm/1560mm
Full weight, kg: 1620

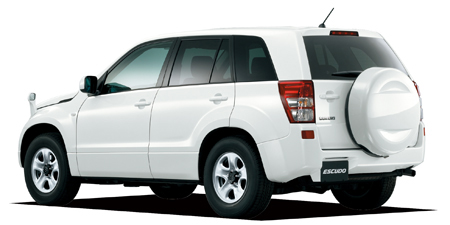

Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

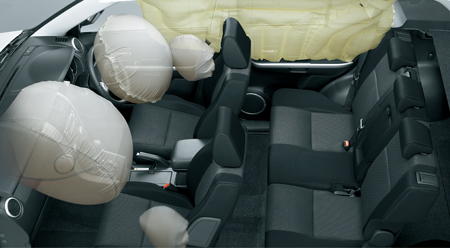

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

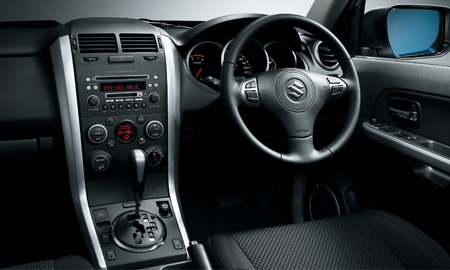

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: J24B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 92.0x90.0
Engine size, cc: 2393
Compression ratio: 10.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 166ps(122kW)/6000rpm
Max torque, Nm/rpm: 22.9kg m(225N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 66 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Multi-link Coil spring

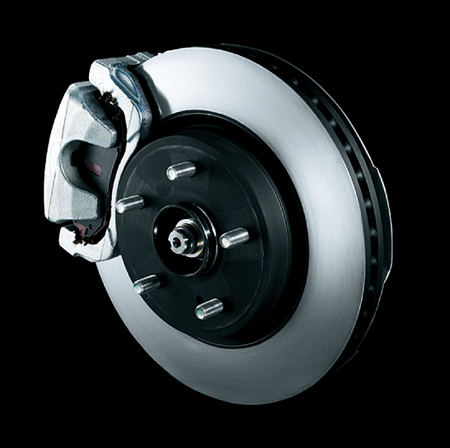

Front brake: Ventilated disk

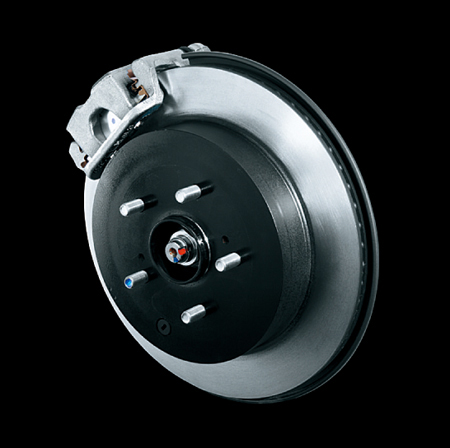

Rear brake: Ventilated disk
Front wheel: 225/70R16 102S
Rear wheel: 225/70R16 102S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT

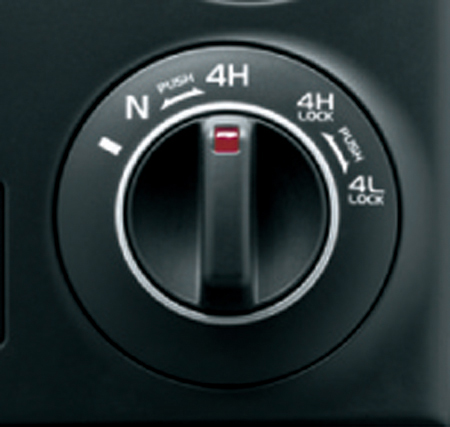

Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.689	—	—	—	—	2.703

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearl / Pearl WhiteGold
