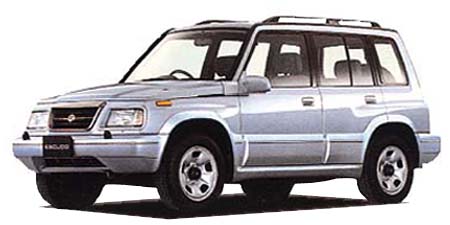

SUZUKI ESCUDO 2000DIESEL

SUZUKI ESCUDO

TD31W · 2000DIESEL

Description

Modification: 2000DIESEL
Chassis ID: TD31W
Dates releasing: 1996.10~
Base price, ¥: KD-TD31W
Body size: 4100x1695x1720
Interior (LxWxH): 1680x1310x1280
Wheelbase: 2480
Track f/r: 1455mm/1450mm
Full weight, kg: 1420
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: RF
Type: water cooling inline 4 cylinder SOHC 8-valves IC-turbo (Diesel)
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 20.4
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 92ps(68kW)/4000rpm
Max torque, Nm/rpm: 23.0kg m(225.6N m)/2000rpm
Supercharger: IC turbo
Fuel tank, liters: 70 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンクWithセンターウィ&#12
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 215/65R16 98S
Rear wheel: 215/65R16 98S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.730	—	—	—	—	2.703

Available colors

blackwhite / Superior Whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
