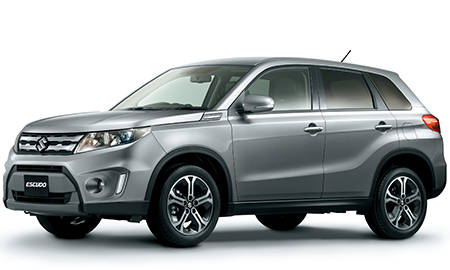

SUZUKI ESCUDO BASE GRADE

SUZUKI ESCUDO

YE21S · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: YE21S
Dates releasing: 2017.1~
Base price, ¥: DBA-YE21S
Body size: 4175x1775x1610
Interior (LxWxH): 1960x1480x1265
Wheelbase: 2500
Track f/r: 1535mm/1505mm
Full weight, kg: 1210
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP ヒルディセントコントロール

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: M16A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.0x83.0
Engine size, cc: 1586
Compression ratio: 11.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 117ps(86kW)/6000rpm
Max torque, Nm/rpm: 15.4kg m(151N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 47 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55R17 94V
Rear wheel: 215/55R17 94V
Min turn diameter, m: 5.2

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.667	2.533	1.556	1.135	0.859	0.686	—	—	3.394

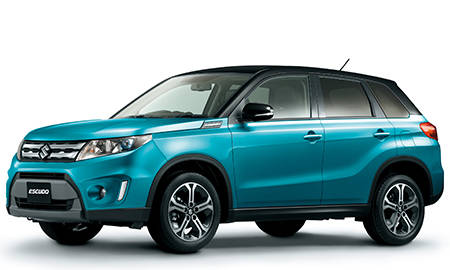

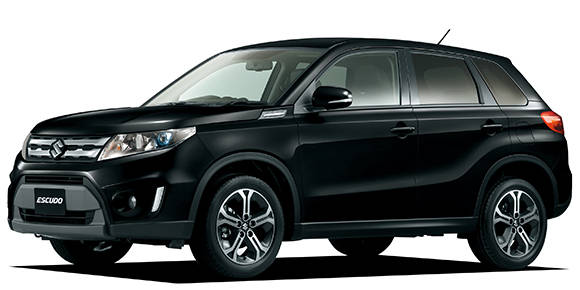

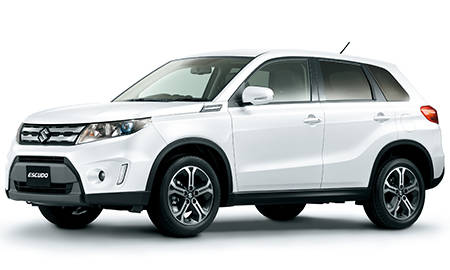

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRed / Other RedBlueDark cyanPearl / Other PearlGold
