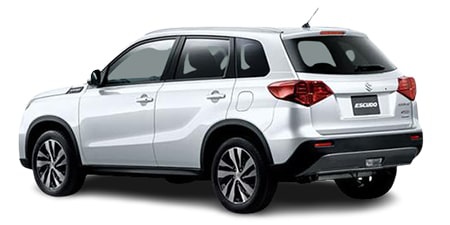

SUZUKI ESCUDO BASE GRADE

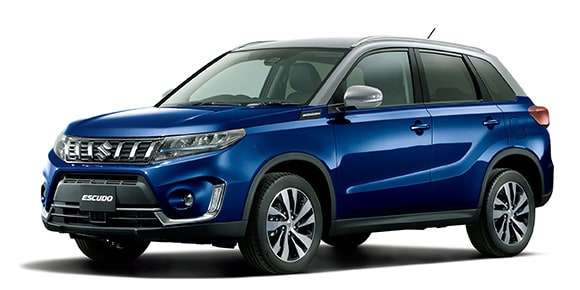

SUZUKI ESCUDO

YEH1S · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: YEH1S
Dates releasing: 2022.4~
Base price, ¥: 5AA-YEH1S
Body size: 4175x1775x1610
Interior (LxWxH): 1960x1480x1265
Wheelbase: 2500
Track f/r: 1535mm/1505mm
Full weight, kg: 1320
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP ヒルディセントコントロール

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

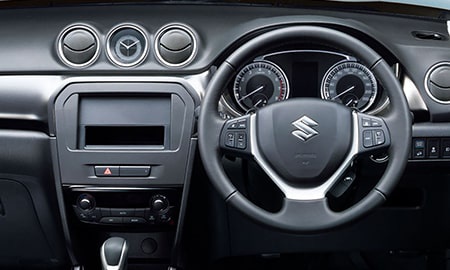

Leather steering wheel: ✓

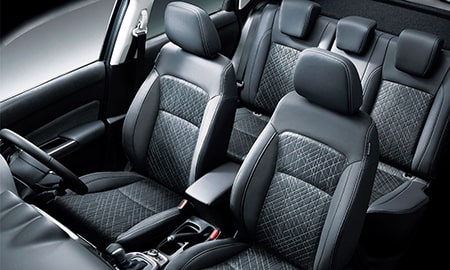

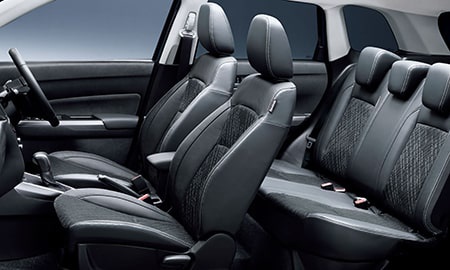

Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

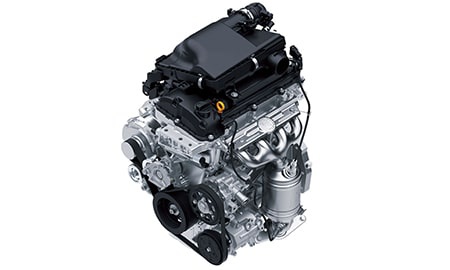

Engine

Model: K15C
Type: water cooling inline 4 cylinder DOHC 16-valves +
Bore x stroke, mm: 74.0x84.9
Engine size, cc: 1460
Compression ratio: 13.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 101ps(74kW)/6000rpm
Max torque, Nm/rpm: 13.5kg m(132N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 47 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55R17 94V
Rear wheel: 215/55R17 94V
Min turn diameter, m: 5.2

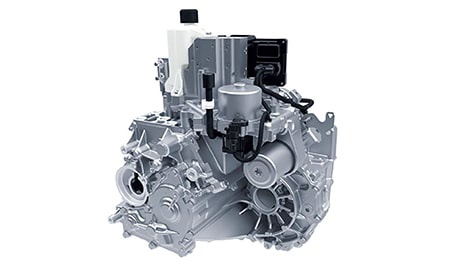

Gearbox

Number of stages: 6AT

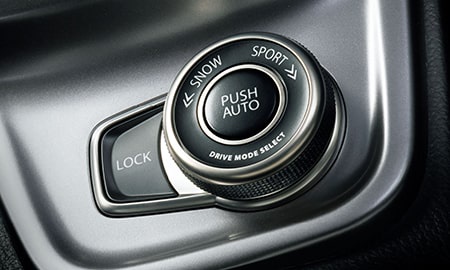

Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.846	2.238	1.540	1.169	0.868	0.659	—	—	3.769

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
