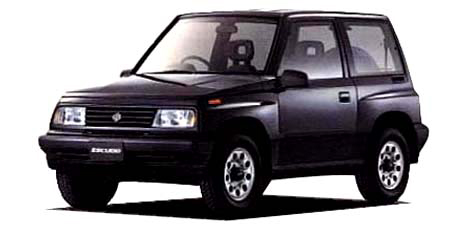

SUZUKI ESCUDO HELLY HANSEN LIMITED HARD TOP

SUZUKI ESCUDO

TA01W · HELLY HANSEN LIMITED HARD TOP

Description

Modification: HELLY HANSEN LIMITED HARD TOP
Chassis ID: TA01W
Dates releasing: 1992.6~
Base price, ¥: E-TA01W
Body size: 3560x1635x1665
Interior (LxWxH): 1595x1275x1240
Wheelbase: 2200
Track f/r: 1395mm/1400mm
Full weight, kg: 1080
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G16A
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 75.0x90.0
Engine size, cc: 1590
Compression ratio: 9.5
Fuel injection: EPI(マルチポイント type 電子制御燃料噴&#2355
Max power, hp/rpm: 100ps(74kW)/6000rpm
Max torque, Nm/rpm: 14.0kg m(137.3N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Other
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンクWithセンターウィ&#12
Front brake: disk
Rear brake: Drum
Front wheel: 195SR15
Rear wheel: 195SR15
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.652	1.947	1.379	1.000	0.864	—	—	—	3.670

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearlGold
