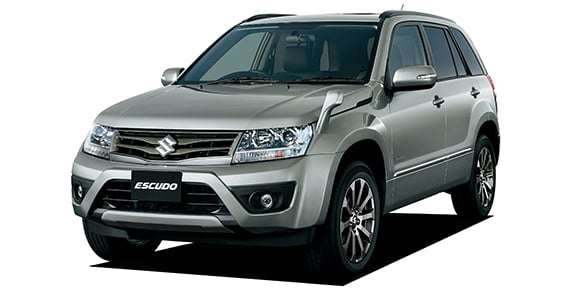

SUZUKI ESCUDO LANDBREEZE

SUZUKI ESCUDO

TDA4W · LANDBREEZE

Description

Modification: LANDBREEZE
Chassis ID: TDA4W
Dates releasing: 2014.8~
Base price, ¥: CBA-TDA4W
Body size: 4300x1810x1695
Interior (LxWxH): 2000x1490x1170
Wheelbase: 2640
Track f/r: 1540mm/1560mm
Full weight, kg: 1630
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP[ヒルホールドコントロールヒルディセントコントロール付]

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

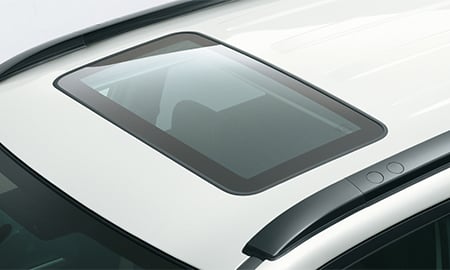

Sunroof: シングル

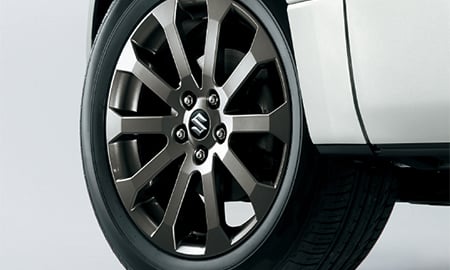

Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: J24B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 92.0x90.0
Engine size, cc: 2393
Compression ratio: 10.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 166ps(122kW)/6000rpm
Max torque, Nm/rpm: 22.9kg m(225N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 66 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 10.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/60R18 100H
Rear wheel: 225/60R18 100H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.826	1.493	1.000	0.689	—	—	—	—	2.703

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearl / Pearl WhiteGold
