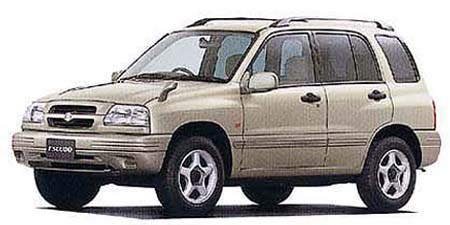

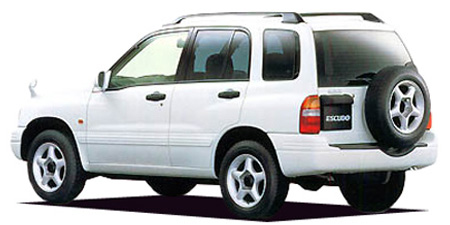

SUZUKI ESCUDO V6-2500

SUZUKI ESCUDO

TD62W · V6-2500

Description

Modification: V6-2500
Chassis ID: TD62W
Dates releasing: 1998.2~
Base price, ¥: GF-TD62W
Body size: 4090x1780x1740
Interior (LxWxH): 1645x1335x1260
Wheelbase: 2480
Track f/r: 1500mm/1500mm
Full weight, kg: 1390
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: H25A
Type: water cooling V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 84.0x75.0
Engine size, cc: 2493
Compression ratio: 9.5
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 160ps(118kW)/6500rpm
Max torque, Nm/rpm: 22.5kg m(220.6N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 66 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 10

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: 5リンクリジッ DOOR クスル type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 235/60R16 100H
Rear wheel: 235/60R16 100H
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.452	1.452	1.000	0.689	—	—	—	—	2.212

Available colors

blackwhite / Superior Whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlue / Other BlueDark cyanPearlGold / Other Gold
