JDM Vehicle Catalog

Vehicle Specs

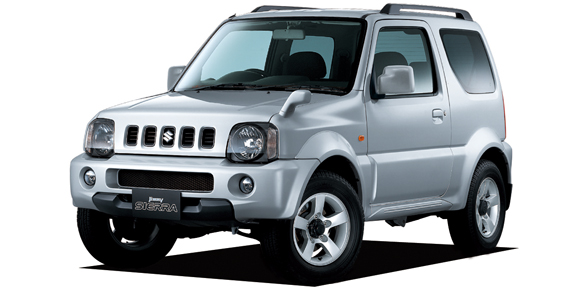

SUZUKI JIMNY SIERRA BASEGRADE

SUZUKI JIMNY SIERRA

JB43W · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: JB43W
Dates releasing: 2008.6~
Base price, ¥: ABA-JB43W
Body size: 3550x1600x1705
Interior (LxWxH): 1660x1220x1210
Wheelbase: 2250
Track f/r: 1355mm/1365mm
Full weight, kg: 1070
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: M13A
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.0x69.5
Engine size, cc: 1328
Compression ratio: 9.5
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 88ps(65kW)/6000rpm
Max torque, Nm/rpm: 12.0kg m(118N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.8

Steering & suspension

Steering: Other
Front suspension: 3リンクリジッ DOOR クスル type Coil spring
Rear suspension: 3リンクリジッ DOOR クスル type Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 205/70R15 95S
Rear wheel: 205/70R15 95S
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.875	1.568	1.000	0.696	—	—	—	—	2.300

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlue / Other BlueDark cyanPearlGold
