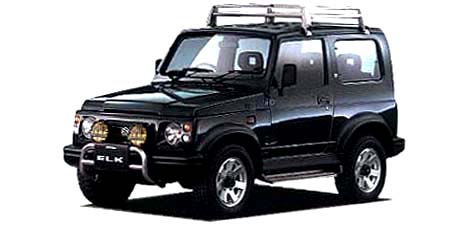

SUZUKI JIMNY SIERRA ELK

SUZUKI JIMNY SIERRA

JB32W · ELK

Description

Modification: ELK
Chassis ID: JB32W
Dates releasing: 1995.11~
Base price, ¥: E-JB32W
Body size: 3510x1545x1670
Interior (LxWxH): 1665x1190x1160
Wheelbase: 2030
Track f/r: 1300mm/1310mm
Full weight, kg: 980
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: G13B
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 74.0x75.5
Engine size, cc: 1298
Compression ratio: 9.5
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 85ps(63kW)/6000rpm
Max torque, Nm/rpm: 10.8kg m(105.9N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.2

Steering & suspension

Steering: Other
Front suspension: 3リンクリジッ DOOR クスル type Coil spring
Rear suspension: 3リンクリジッ DOOR クスル type Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 205/70R15 95Q
Rear wheel: 205/70R15 95Q
Min turn diameter, m: 5.1

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.652	1.947	1.423	1.000	0.864	—	—	—	3.466

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
