JDM Vehicle Catalog

Vehicle Specs

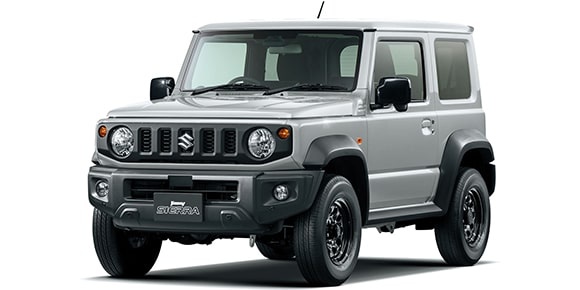

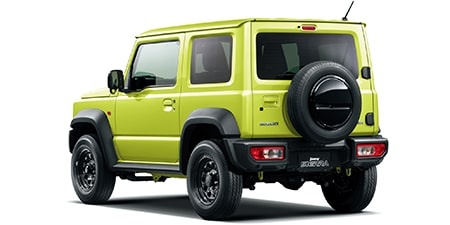

SUZUKI JIMNY SIERRA JL

SUZUKI JIMNY SIERRA

JB74W · JL

Description

Modification: JL
Chassis ID: JB74W
Dates releasing: 2025.11~
Base price, ¥: 3BA-JB74W
Body size: 3550x1645x1730
Interior (LxWxH): 1795x1300x1200
Wheelbase: 2250
Track f/r: 1395mm/1405mm
Full weight, kg: 1100
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP ヒルディセントコントロール

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K15B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 74.0x84.9
Engine size, cc: 1460
Compression ratio: 10.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 101ps(74kW)/6000rpm
Max torque, Nm/rpm: 13.3kg m(130N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: ボールナット
Front suspension: 3リンクリジッ DOOR クスル type Coil spring
Rear suspension: 3リンクリジッ DOOR クスル type Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 195/80R15
Rear wheel: 195/80R15
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5MT
Drive: Part-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.425	2.304	1.674	1.190	1.000	—	—	—	5.151

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlue / Other BlueDark cyanPearlGold
