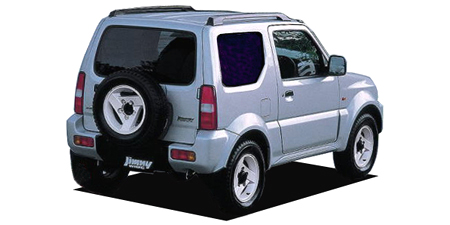

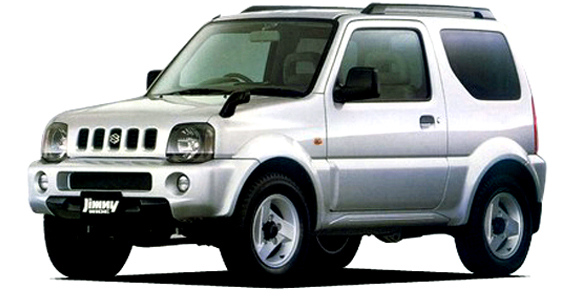

SUZUKI JIMNY WIDE JZ

SUZUKI JIMNY WIDE

JB33W · JZ

Description

Modification: JZ
Chassis ID: JB33W
Dates releasing: 1998.1~
Base price, ¥: GF-JB33W
Body size: 3550x1600x1705
Interior (LxWxH): 1565x1220x1210
Wheelbase: 2250
Track f/r: 1355mm/1365mm
Full weight, kg: 1010
Body type: SUV
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: G13B
Type: water cooling inline 4 cylinder SOHC 16-valves
Bore x stroke, mm: 74.0x75.5
Engine size, cc: 1298
Compression ratio: 9.5
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 85ps(63kW)/6000rpm
Max torque, Nm/rpm: 11.3kg m(110.8N m)/4500rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.5

Steering & suspension

Steering: Other
Front suspension: 3リンクリジッ DOOR クスル type Coil spring
Rear suspension: 3リンクリジッ DOOR クスル type Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 205/70R15 95Q
Rear wheel: 205/70R15 95Q
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: Part-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.962	1.515	1.000	0.738	—	—	—	—	2.810

Available colors

blackwhite / Superior Whitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRed / Other RedBlueDark cyanPearlGold / Other Gold
