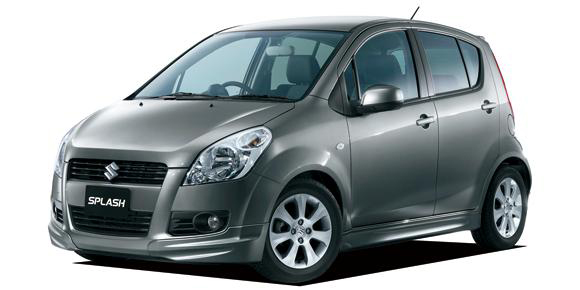

SUZUKI SPLASH LIMITED

SUZUKI SPLASH

XB32S · LIMITED

Description

Modification: LIMITED
Chassis ID: XB32S
Dates releasing: 2010.1~
Base price, ¥: DBA-XB32S
Body size: 3715x1680x1590
Interior (LxWxH): 1850x1375x1240
Wheelbase: 2360
Track f/r: 1460mm/1470mm
Full weight, kg: 1050
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K12B
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 73.0x74.2
Engine size, cc: 1242
Compression ratio: 11.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 88ps(65kW)/5600rpm
Max torque, Nm/rpm: 11.9kg m(117N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/60R15 84H
Rear wheel: 185/60R15 84H
Min turn diameter, m: 5.2

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.426	—	—	—	—	—	—	—	—	2.505

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
