JDM Vehicle Catalog

Vehicle Specs

SUZUKI WAGON R FA

SUZUKI WAGON R

MH21S · FA

Description

Modification: FA
Chassis ID: MH21S
Dates releasing: 2006.10~
Base price, ¥: DBA-MH21S
Body size: 3395x1475x1655
Interior (LxWxH): 1850x1295x1305
Wheelbase: 2360
Track f/r: 1290mm/1290mm
Full weight, kg: 860
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO

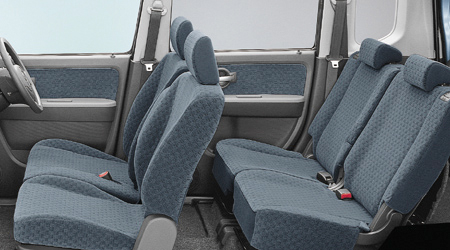

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: K6A
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 68.0x60.4
Engine size, cc: 658
Compression ratio: 10.5
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 54ps(40kW)/6500rpm
Max torque, Nm/rpm: 6.4kg m(63N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 4.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R13 73S
Rear wheel: 155/65R13 73S
Min turn diameter, m: 4.1

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.300	2.470	1.521	1.030	0.783	—	—	—	3.583

Available colors

black / Bluish Black III Pearlwhite / Superior WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold
