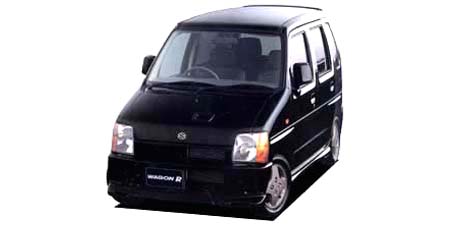

SUZUKI WAGON R RR

SUZUKI WAGON R

CV51S · RR

Description

Modification: RR
Chassis ID: CV51S
Dates releasing: 1998.1~
Base price, ¥: E-CV51S
Body size: 3295x1395x1655
Interior (LxWxH): 1685x1180x1315
Wheelbase: 2335
Track f/r: 1220mm/1200mm
Full weight, kg: 800
Body type: Key SUV
Doors / seats: 4 door / 4

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 13 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K6A
Type: water cooling inline 3 cylinder DOHC 12-valves IC-turbo
Bore x stroke, mm: 68.0x60.4
Engine size, cc: 658
Compression ratio: 8.4
Fuel injection: EPI(電子制御燃料噴射)
Max power, hp/rpm: 64ps(47kW)/6500rpm
Max torque, Nm/rpm: 10.5kg m(103.0N m)/3500rpm
Supercharger: IC turbo
Fuel tank, liters: 30 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: ITL
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R13 73S
Rear wheel: 155/65R13 73S
Min turn diameter, m: 4.6

Gearbox

Number of stages: 3AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.659	1.530	1.000	—	—	—	—	—	2.129

Available colors

black / Other blackwhite / Superior WhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
