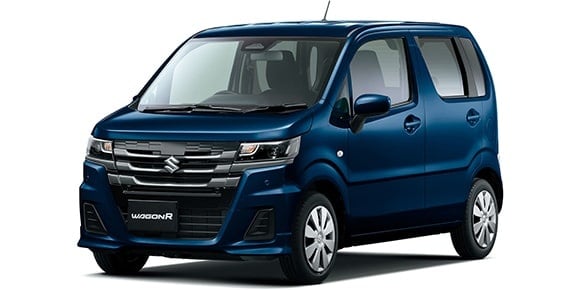

SUZUKI WAGON R ZL

SUZUKI WAGON R

MH85S · ZL

Description

Modification: ZL
Chassis ID: MH85S
Dates releasing: 2025.12~
Base price, ¥: 5BA-MH85S
Body size: 3395x1475x1650

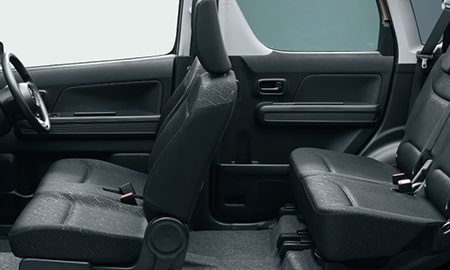

Interior (LxWxH): 2455x1355x1265
Wheelbase: 2460
Track f/r: 1295mm/1300mm
Full weight, kg: 770
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

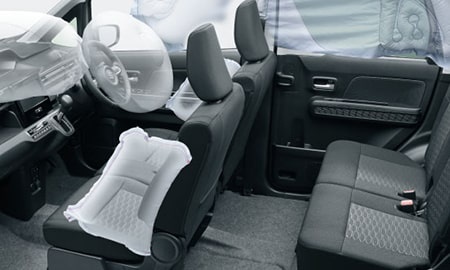

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO

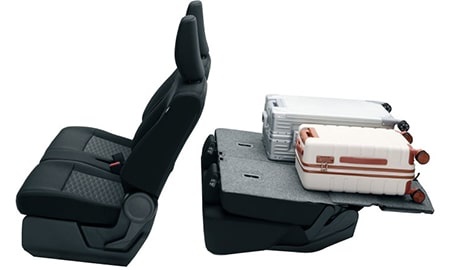

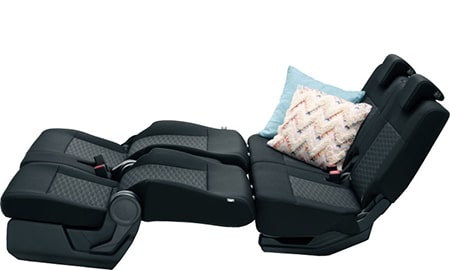

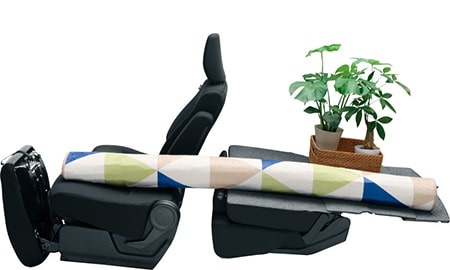

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: R06D
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 61.5x73.8
Engine size, cc: 657
Compression ratio: 12.0
Fuel injection: EPI(電子制御燃料噴射装置)
Max power, hp/rpm: 49ps(36kW)/6500rpm
Max torque, Nm/rpm: 5.9kg m(58N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 27 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 3.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: disk
Rear brake: Drum
Front wheel: 155/65R14
Rear wheel: 155/65R14
Min turn diameter, m: 4.4

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.562~0.392	—	—	—	—	—	—	—	—	3.115~0.476

Available colors

black / Bluish Black III PearlwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRedBlue / Other BlueDark cyan / Other Dark cyanPearl / Pure White PearlGold / Other Gold
