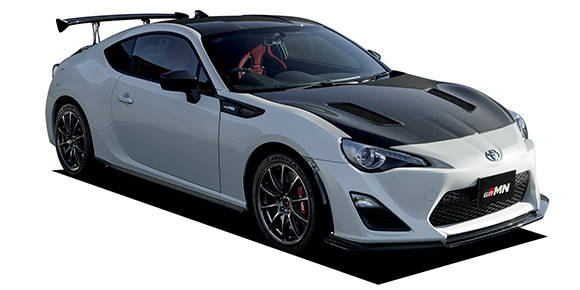

TOYOTA 86 GRMN

TOYOTA 86

— · GRMN

Description

Modification: GRMN
Chassis ID: —
Dates releasing: 2016.1~
Base price, ¥: ----
Body size: 4290x1775x1300
Interior (LxWxH): 950x1490x1060
Wheelbase: 2570
Track f/r: 1525mm/1535mm
Full weight, kg: 1230
Body type: Coupe
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC(ビークルスタビリティコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: FA20-GR
Type: horizontally-opposed 4 cylinder DOHC
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 12.5
Fuel injection: 筒内直接+ポート燃料噴射装置(D-4S)
Max power, hp/rpm: 219ps(161kW)/7300rpm
Max torque, Nm/rpm: 21.1kg m(217N m)/5200rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/40R17 83W
Rear wheel: 235/40R17 90W
Min turn diameter, m: 5.4

Gearbox

Number of stages: 6MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): ✓ / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.907	2.036	1.541	1.213	1.000	0.767	—	—	3.437

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
