JDM Vehicle Catalog

Vehicle Specs

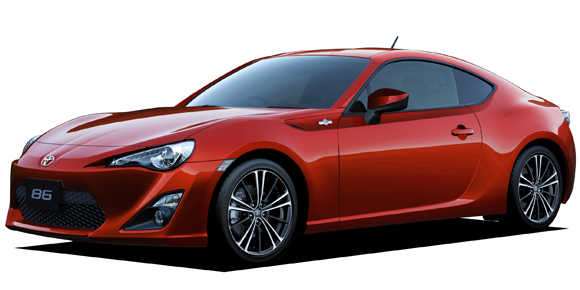

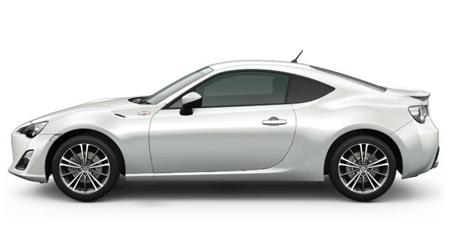

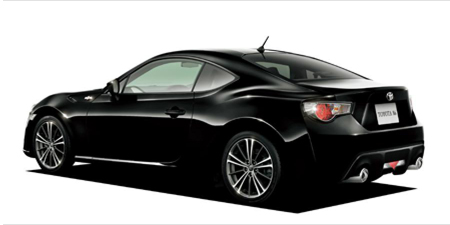

TOYOTA 86 GT

TOYOTA 86

ZN6 · GT

Description

Modification: GT
Chassis ID: ZN6
Dates releasing: 2014.4~
Base price, ¥: DBA-ZN6
Body size: 4240x1775x1300
Interior (LxWxH): 1615x1490x1060
Wheelbase: 2570
Track f/r: 1520mm/1540mm
Full weight, kg: 1230
Body type: Coupe
Doors / seats: 2 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓

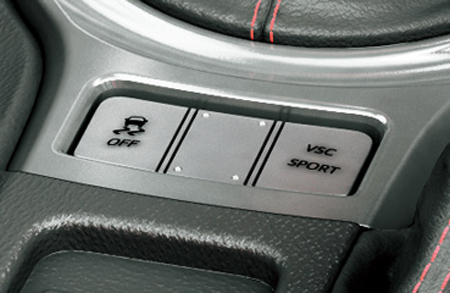

Additional equipment: VSC(ビークルスタビリティコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×

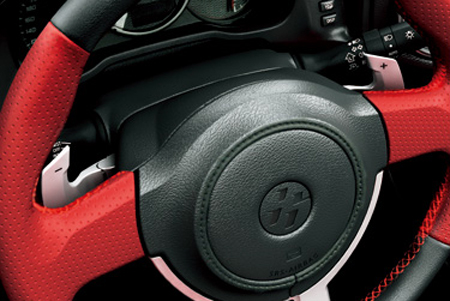

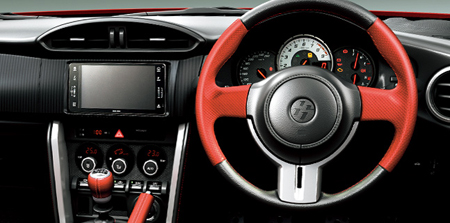

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

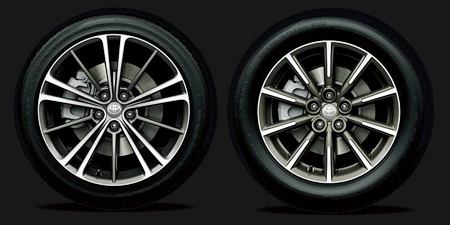

Alloy wheels: 17 inches standard
Folding seat: 一体
Glass w/ UV filter: ✓
Toned glasses: ✓

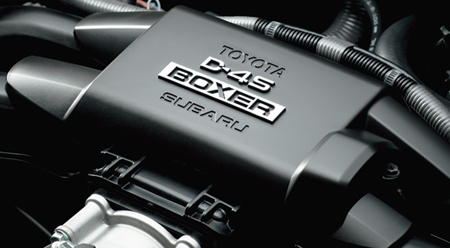

Engine

Model: FA20
Type: horizontally-opposed 4 cylinder DOHC
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 12.5
Fuel injection: 筒内直接+ポート燃料噴射装置(D-4S)
Max power, hp/rpm: 200ps(147kW)/7000rpm
Max torque, Nm/rpm: 20.9kg m(205N m)/6400~6600rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring

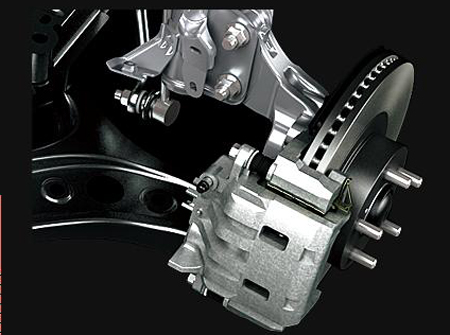

Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/45R17 87W
Rear wheel: 215/45R17 87W
Min turn diameter, m: 5.4

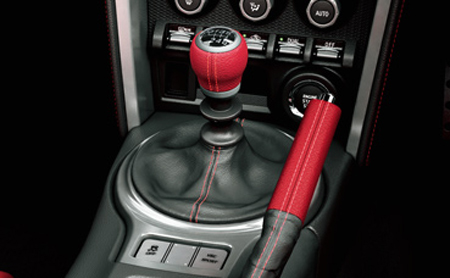

Gearbox

Number of stages: 6MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×

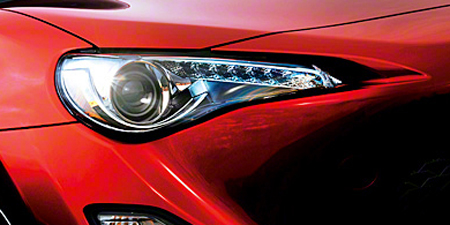

Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.626	2.188	1.541	1.213	1.000	0.767	—	—	3.437

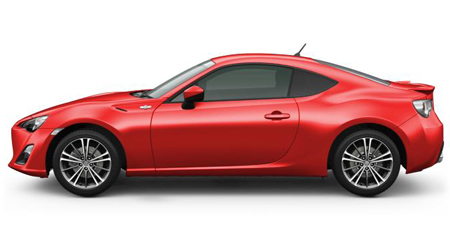

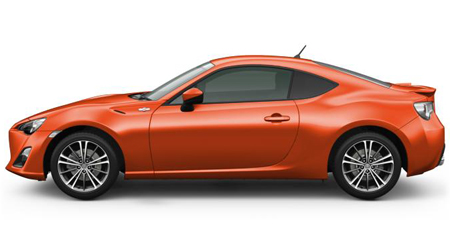

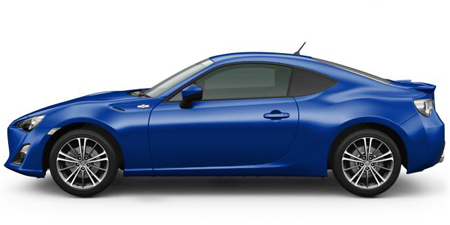

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold / Other Gold
