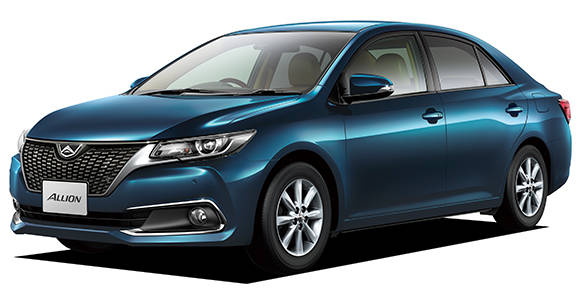

TOYOTA ALLION A15

TOYOTA ALLION

NZT260 · A15

Description

Modification: A15
Chassis ID: NZT260
Dates releasing: 2019.10~
Base price, ¥: DBA-NZT260
Body size: 4590x1695x1475
Interior (LxWxH): 2055x1450x1205
Wheelbase: 2700
Track f/r: 1480mm/1460mm
Full weight, kg: 1200
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: S-VSC

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1NZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 11.0
Fuel injection: EFI
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 13.9kg m(136N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R15
Rear wheel: 185/65R15
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ◯

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.480~0.396	—	—	—	—	—	—	—	—	2.604~1.680

Available colors

black / Other blackwhite / Super White IIgreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlue / Other BlueDark cyanPearl / White Pearl Crystal ShineGold
