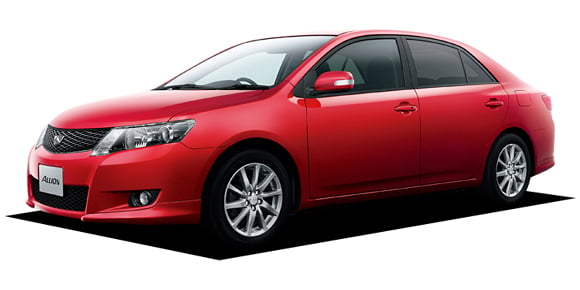

TOYOTA ALLION A18

TOYOTA ALLION

ZRT260 · A18

Description

Modification: A18
Chassis ID: ZRT260
Dates releasing: 2007.6~
Base price, ¥: DBA-ZRT260
Body size: 4565x1695x1475
Interior (LxWxH): 2055x1450x1205
Wheelbase: 2700
Track f/r: 1480mm/1460mm
Full weight, kg: 1220
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

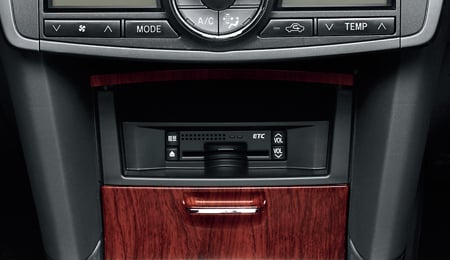

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×

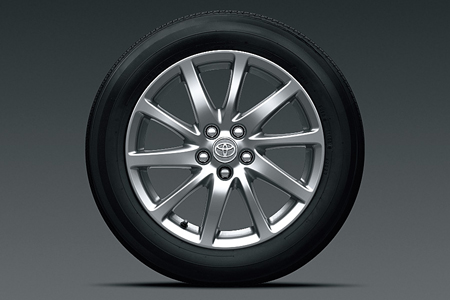

Alloy wheels: Option settings NO

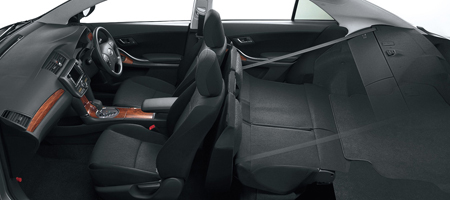

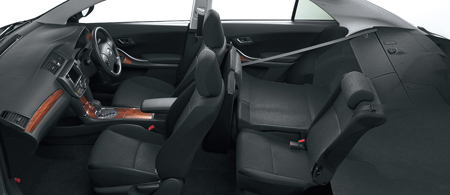

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 2ZR-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 80.5x88.3
Engine size, cc: 1797
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 136ps(100kW)/6000rpm
Max torque, Nm/rpm: 17.8kg m(175N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum

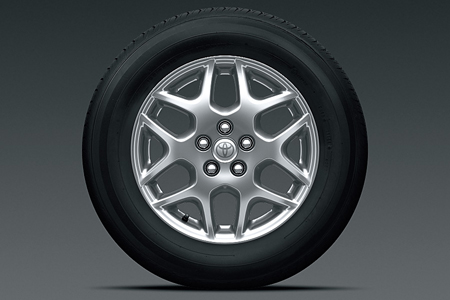

Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

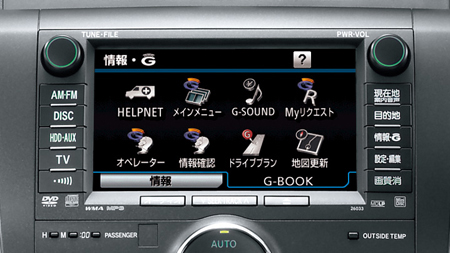

Navigation & sound

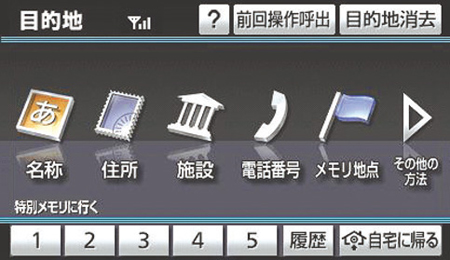

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.411	—	—	—	—	—	—	—	—	2.505

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilverRed / Red mica metallicBlueDark cyan / Other Dark cyanPearl / White Pearl Crystal ShineGold
