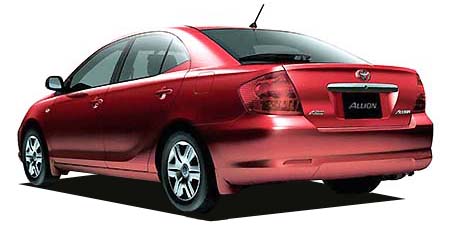

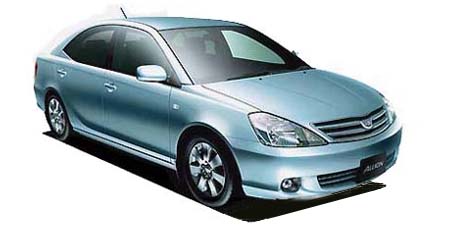

TOYOTA ALLION A20

TOYOTA ALLION

AZT240 · A20

Description

Modification: A20
Chassis ID: AZT240
Dates releasing: 2004.4~
Base price, ¥: TA-AZT240
Body size: 4550x1695x1470
Interior (LxWxH): 1975x1395x1190
Wheelbase: 2700
Track f/r: 1480mm/1460mm
Full weight, kg: 1240
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

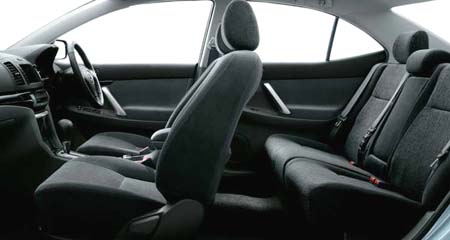

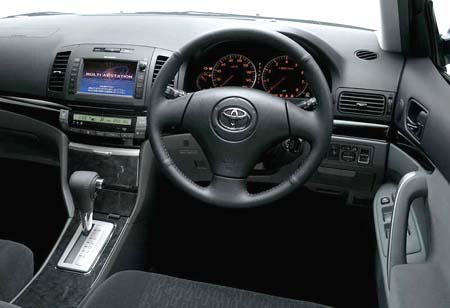

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1AZ-FSE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.8
Fuel injection: 筒内直接燃料噴射装置(D-4)
Max power, hp/rpm: 152ps(112kW)/6000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	2.456

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilverRed / Red mica metallicBlueDark cyanPearl / Other PearlGold
