JDM Vehicle Catalog

Vehicle Specs

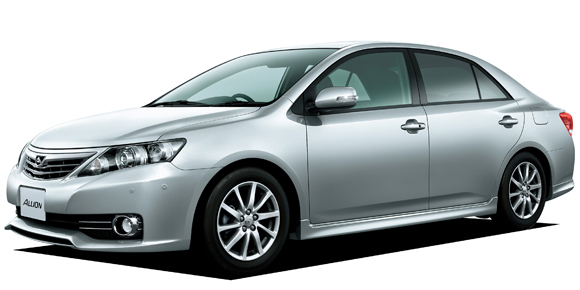

TOYOTA ALLION A20 S PACKAGE

TOYOTA ALLION

ZRT261 · A20 S PACKAGE

Description

Modification: A20 S PACKAGE
Chassis ID: ZRT261
Dates releasing: 2011.10~
Base price, ¥: DBA-ZRT261
Body size: 4565x1695x1475
Interior (LxWxH): 2055x1450x1205
Wheelbase: 2700
Track f/r: 1480mm/1465mm
Full weight, kg: 1270
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ◯
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

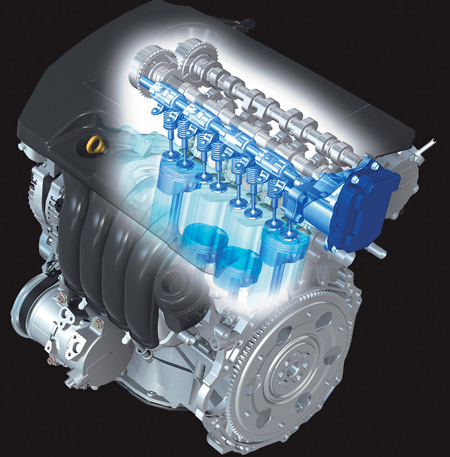

Engine

Model: 3ZR-FAE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 80.5x97.6
Engine size, cc: 1986
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 158ps(116kW)/6200rpm
Max torque, Nm/rpm: 20.0kg m(196N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/55R16 86V
Rear wheel: 195/55R16 86V
Min turn diameter, m: 5.3

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): ✓ / ×
Wiper: ◯

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.396~0.428	—	—	—	—	—	—	—	—	1.668

Available colors

blackwhite / Super White IIgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Dark blue micaPurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold
