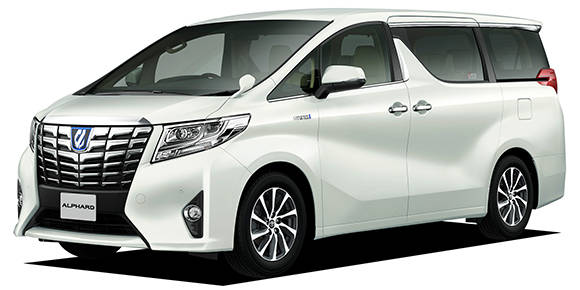

TOYOTA ALPHARD HYBRID X

TOYOTA ALPHARD HYBRID

AYH30W · X

Description

Modification: X
Chassis ID: AYH30W
Dates releasing: 2015.1~
Base price, ¥: DAA-AYH30W
Body size: 4915x1850x1895
Interior (LxWxH): 3210x1590x1400
Wheelbase: 3000
Track f/r: 1600mm/1595mm
Full weight, kg: 2090
Body type: MV 1Box
Doors / seats: 5 door / 8

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

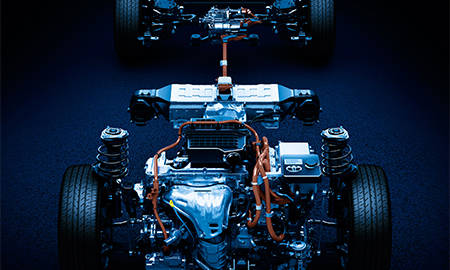

Engine

Model: 2AR-FXE
Type: inline 4 cylinder DOHC+
Bore x stroke, mm: 90.0x98.0
Engine size, cc: 2493
Compression ratio: 12.5
Fuel injection: EFI
Max power, hp/rpm: 152ps(112kW)/5700rpm
Max torque, Nm/rpm: 21.0kg m(206N m)/4400~4800rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring

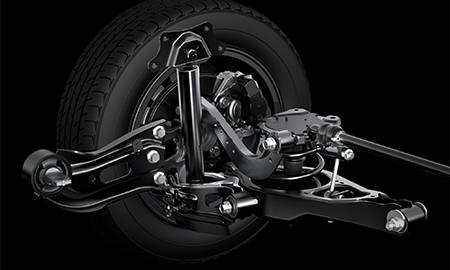

Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 215/65R16 98H
Rear wheel: 215/65R16 98H
Min turn diameter, m: 5.6

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
