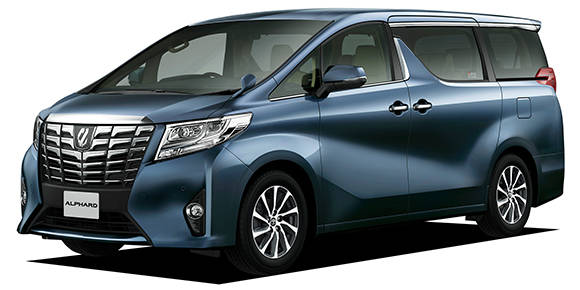

TOYOTA ALPHARD 3.5SA

TOYOTA ALPHARD

GGH35W · 3.5SA

Description

Modification: 3.5SA
Chassis ID: GGH35W
Dates releasing: 2015.1~
Base price, ¥: DBA-GGH35W
Body size: 4935x1850x1895
Interior (LxWxH): 3210x1590x1400
Wheelbase: 3000
Track f/r: 1575mm/1570mm
Full weight, kg: 2100
Body type: MV 1Box

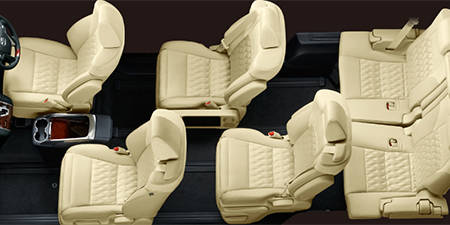

Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

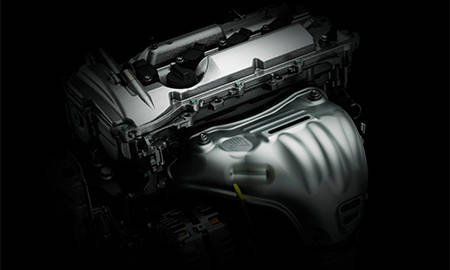

Engine

Model: 2GR-FE
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 94.0x83.0
Engine size, cc: 3456
Compression ratio: 10.8
Fuel injection: EFI
Max power, hp/rpm: 280ps(206kW)/6200rpm
Max torque, Nm/rpm: 35.1kg m(344N m)/4700rpm
Supercharger: ×
Fuel tank, liters: 65 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring

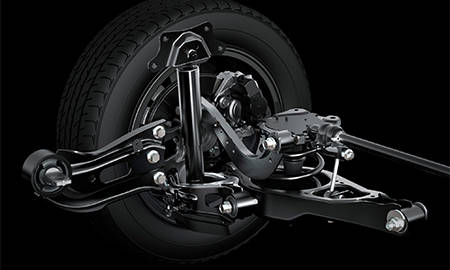

Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 235/50R18 97V
Rear wheel: 235/50R18 97V
Min turn diameter, m: 5.8

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.300	1.900	1.420	1.000	0.713	0.608	—	—	4.148

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Gray metallicYellowYellow-greenBlack (P) / Other Black (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
