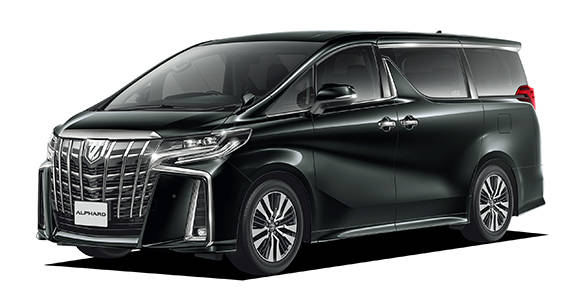

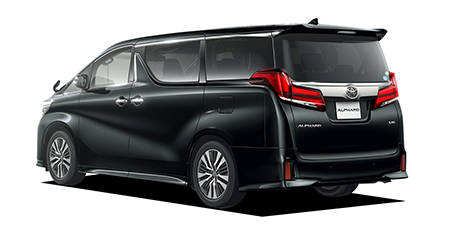

TOYOTA ALPHARD 3.5SC

TOYOTA ALPHARD

GGH30W · 3.5SC

Description

Modification: 3.5SC
Chassis ID: GGH30W
Dates releasing: 2018.10~
Base price, ¥: DBA-GGH30W
Body size: 4950x1850x1935
Interior (LxWxH): 3210x1590x1400
Wheelbase: 3000
Track f/r: 1575mm/1580mm
Full weight, kg: 2090
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: S-VSC

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ✓
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2GR-FKS
Type: V-type 6 cylinder
Bore x stroke, mm: 94.0x83.0
Engine size, cc: 3456
Compression ratio: ----
Fuel injection: 筒内直接+ポート燃料噴射装置(D-4S)
Max power, hp/rpm: 301ps(221kW)/6600rpm
Max torque, Nm/rpm: 36.8kg m(361N m)/4600~4700rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 235/50R18 97V
Rear wheel: 235/50R18 97V
Min turn diameter, m: 5.8

Gearbox

Number of stages: 8AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.519	3.184	2.050	1.491	1.234	1.000	0.800	0.673	4.220

Available colors

blackwhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / Other PearlGold
