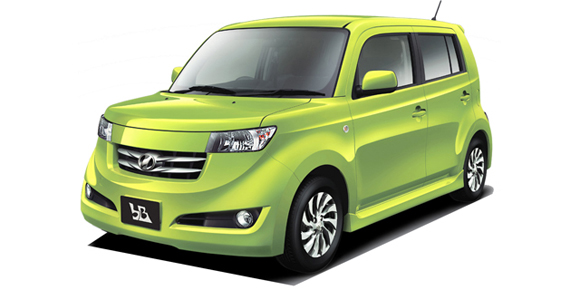

TOYOTA bB S Q VERSION

TOYOTA bB

QNC20 · S Q VERSION

Description

Modification: S Q VERSION
Chassis ID: QNC20
Dates releasing: 2006.5~
Base price, ¥: DBA-QNC20
Body size: 3800x1690x1635
Interior (LxWxH): 1915x1420x1330
Wheelbase: 2540
Track f/r: 1470mm/1465mm
Full weight, kg: 1060
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: K3-VE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 72.0x79.7
Engine size, cc: 1297
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 92ps(68kW)/6000rpm
Max torque, Nm/rpm: 12.5kg m(123N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/55R15
Rear wheel: 185/55R15
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.730	1.526	1.000	0.696	—	—	—	—	2.290

Available colors

black / Black mica metallicwhitegreenMaroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshes / Gray metallicYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Bright silver metallicRed / Other RedBlueDark cyanPearl / Other PearlGold
