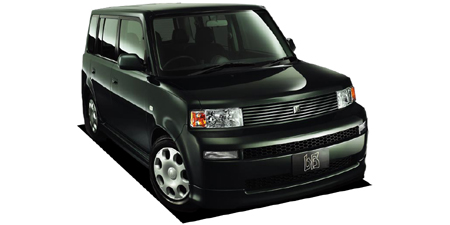

TOYOTA bB Z HID SELECTION

TOYOTA bB

NCP31 · Z HID SELECTION

Description

Modification: Z HID SELECTION
Chassis ID: NCP31
Dates releasing: 2004.2~
Base price, ¥: CBA-NCP31
Body size: 3945x1690x1640
Interior (LxWxH): 1965x1375x1355
Wheelbase: 2500
Track f/r: 1450mm/1435mm
Full weight, kg: 1070
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 1NZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x84.7
Engine size, cc: 1496
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 14.4kg m(141N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 45 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R15 88S
Rear wheel: 185/65R15 88S
Min turn diameter, m: 5.5

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.847	1.552	1.000	0.700	—	—	—	—	2.343

Available colors

black / black micawhitegreenMaroon (brown)Olive / Dark grayish olive metallicNavy blue / Dark blue micaPurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearl / White Pearl Crystal ShineGold
