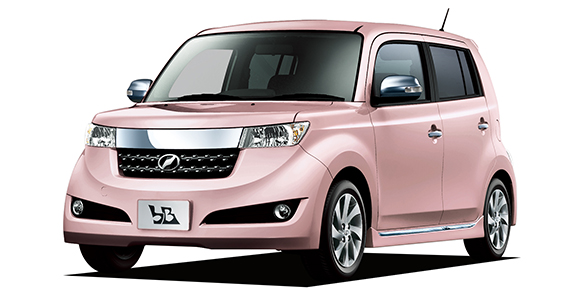

TOYOTA bB Z KIRAMEKI

TOYOTA bB

QNC21 · Z KIRAMEKI

Description

Modification: Z KIRAMEKI
Chassis ID: QNC21
Dates releasing: 2014.9~
Base price, ¥: CBA-QNC21
Body size: 3800x1690x1635
Interior (LxWxH): 1970x1420x1330
Wheelbase: 2540
Track f/r: 1470mm/1465mm
Full weight, kg: 1070
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 3SZ-VE
Type: water cooling inline 4 cylinder DOHC
Bore x stroke, mm: 72.0x91.8
Engine size, cc: 1495
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 109ps(80kW)/6000rpm
Max torque, Nm/rpm: 14.4kg m(141N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/55R15
Rear wheel: 185/55R15
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.730	1.526	1.000	0.696	—	—	—	—	2.290

Available colors

black / Black mica metallicwhitegreenMaroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)Magenta / Other MagentaSilver / Other SilverRedBlueDark cyanPearl / Pearl white IIIGold
