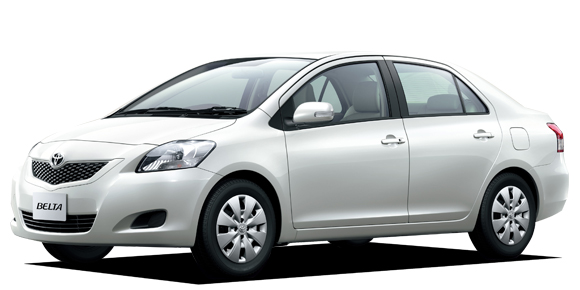

TOYOTA BELTA X

TOYOTA BELTA

NCP96 · X

Description

Modification: X
Chassis ID: NCP96
Dates releasing: 2008.8~
Base price, ¥: CBA-NCP96
Body size: 4300x1690x1480
Interior (LxWxH): 1965x1390x1200
Wheelbase: 2550
Track f/r: 1480mm/1470mm
Full weight, kg: 1110
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES

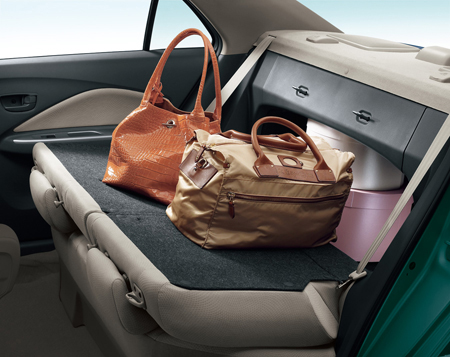

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 2NZ-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 75.0x73.5
Engine size, cc: 1298
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 87ps(64kW)/6000rpm
Max torque, Nm/rpm: 12.2kg m(120N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165/70R14
Rear wheel: 165/70R14
Min turn diameter, m: 4.6

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.875	1.568	1.000	0.696	—	—	—	—	2.300

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Silver metallicRed / Red mica metallicBlue / Other BlueDark cyan / Other Dark cyanPearl / White Pearl Crystal ShineGold
