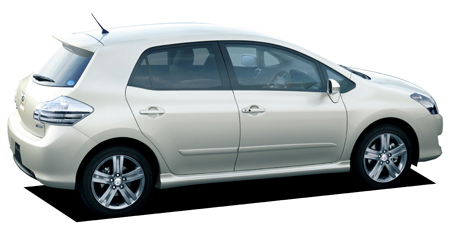

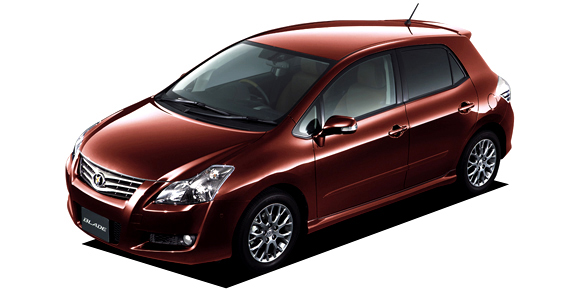

TOYOTA BLADE MASTER

TOYOTA BLADE

GRE156H · MASTER

Description

Modification: MASTER
Chassis ID: GRE156H
Dates releasing: 2008.10~
Base price, ¥: DBA-GRE156H
Body size: 4260x1760x1515
Interior (LxWxH): 1985x1480x1245
Wheelbase: 2600
Track f/r: 1515mm/1510mm
Full weight, kg: 1470
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC&TRC(ヒルスタート ASSIST コントロール付)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯

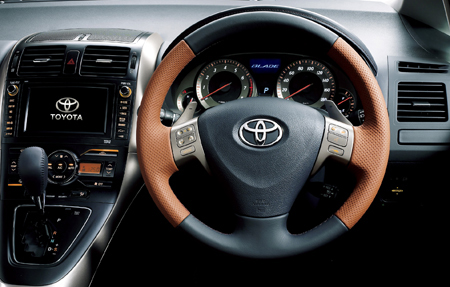

Leather steering wheel: ✓

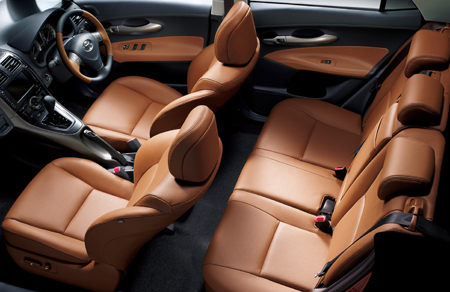

Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

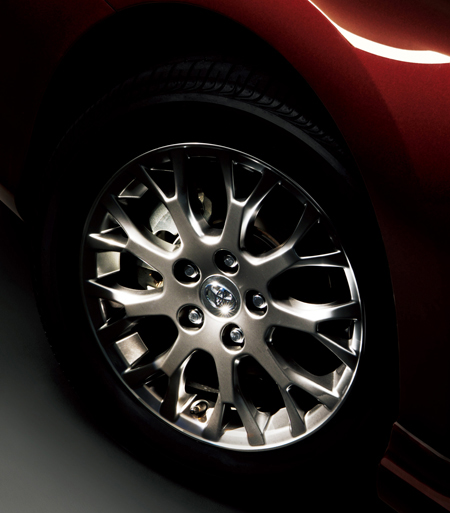

Alloy wheels: 17 inches standard

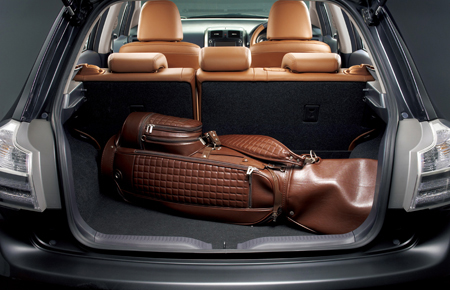

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2GR-FE
Type: V-type 6 cylinder DOHC
Bore x stroke, mm: 94.0x83.0
Engine size, cc: 3456
Compression ratio: 10.8
Fuel injection: EFI
Max power, hp/rpm: 280ps(206kW)/6200rpm
Max torque, Nm/rpm: 35.1kg m(344N m)/4700rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45R17 90W
Rear wheel: 225/45R17 90W
Min turn diameter, m: 5.5

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.300	1.900	1.420	1.000	0.713	0.608	—	—	4.148

Available colors

black / black micawhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Super Red VBlueDark cyanPearl / White Pearl Crystal ShineGold / Other Gold
