JDM Vehicle Catalog

Vehicle Specs

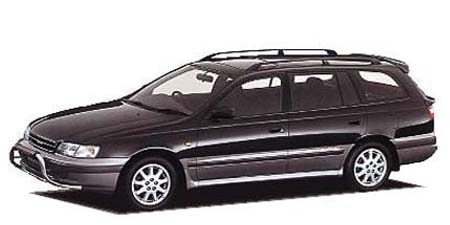

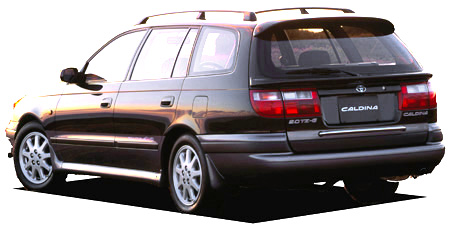

TOYOTA CALDINA TZ

TOYOTA CALDINA

ST195G · TZ

Description

Modification: TZ
Chassis ID: ST195G
Dates releasing: 1995.2~
Base price, ¥: E-ST195G
Body size: 4545x1695x1555
Interior (LxWxH): 1925x1445x1245
Wheelbase: 2580
Track f/r: 1465mm/1435mm
Full weight, kg: 1370
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: 特殊形状
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3S-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.5
Fuel injection: EFI
Max power, hp/rpm: 135ps(99kW)/6000rpm
Max torque, Nm/rpm: 18.5kg m(181.4N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 9.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 185/65R14 86S
Rear wheel: 185/65R14 86S
Min turn diameter, m: 5.3

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.810	1.549	1.000	0.734	—	—	—	—	2.296

Available colors

black / Other blackwhite / Super White IIgreen / Other greenMaroon (brown)Olive / Dark grayish olive metallicNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)Magenta / Other MagentaSilverRedBlueDark cyanPearlGold / Other Gold
