JDM Vehicle Catalog

Vehicle Specs

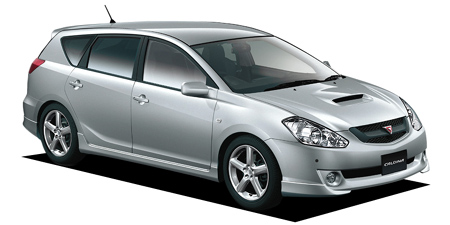

TOYOTA CALDINA ZT

TOYOTA CALDINA

AZT241W · ZT

Description

Modification: ZT
Chassis ID: AZT241W
Dates releasing: 2003.12~
Base price, ¥: TA-AZT241W
Body size: 4510x1740x1445
Interior (LxWxH): 1905x1455x1165
Wheelbase: 2700
Track f/r: 1505mm/1500mm
Full weight, kg: 1310
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1AZ-FSE(D-4)
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 9.8
Fuel injection: 筒内直接燃料噴射装置(D-4)
Max power, hp/rpm: 152ps(112kW)/6000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Double wishbone type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/45ZR17
Rear wheel: 215/45ZR17
Min turn diameter, m: 5.4

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.643	2.008	1.296	0.892	—	—	—	—	2.977

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Silver metallicRed / Super Red VBlue / Blue mica metallicDark cyanPearl / White Pearl Crystal ShineGold
