JDM Vehicle Catalog

Vehicle Specs

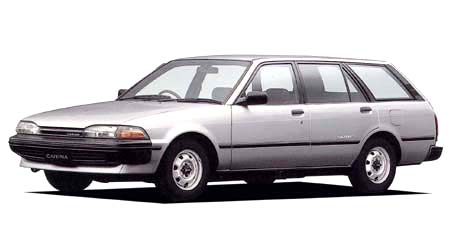

TOYOTA CARINA SURF SX

TOYOTA CARINA SURF

ST170G · SX

Description

Modification: SX
Chassis ID: ST170G
Dates releasing: 1988.5~
Base price, ¥: E-ST170G
Body size: 4430x1690x1380
Interior (LxWxH): 1850x1420x1150
Wheelbase: 2525
Track f/r: 1455mm/1425mm
Full weight, kg: 1110
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ◯
Steering column length: ×
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4S-FI
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 82.5x86.0
Engine size, cc: 1838
Compression ratio: 9.3
Fuel injection: Ci電子制御 type 燃料噴射装置
Max power, hp/rpm: 105ps(77kW)/5600rpm
Max torque, Nm/rpm: 15.2kg m(149.1N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type coil spring stabilizer attaching
Rear suspension: Strut type coil spring stabilizer attaching
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165SR13
Rear wheel: 165SR13
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.810	1.549	1.000	0.706	—	—	—	—	2.296

Available colors

blackwhite / Super White IIgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)Magenta / Red micaSilverRedBlueDark cyanPearlGold
