JDM Vehicle Catalog

Vehicle Specs

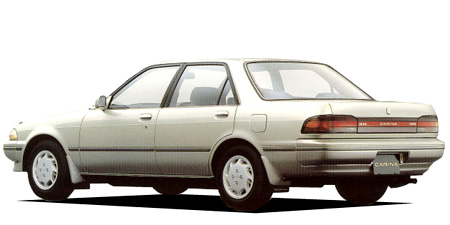

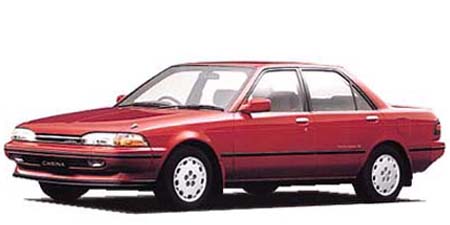

TOYOTA CARINA SE

TOYOTA CARINA

CT170 · SE

Description

Modification: SE
Chassis ID: CT170
Dates releasing: 1988.5~
Base price, ¥: Q-CT170
Body size: 4380x1690x1370
Interior (LxWxH): 1875x1420x1150
Wheelbase: 2525
Track f/r: 1470mm/1440mm
Full weight, kg: 1090
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 2C
Type: inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 86.0x85.0
Engine size, cc: 1974
Compression ratio: 23.0
Fuel injection: ボッシュ type 分配型(噴射ポンプ)
Max power, hp/rpm: 73ps(54kW)/4700rpm
Max torque, Nm/rpm: 13.5kg m(132.4N m)/3000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type coil spring stabilizer attaching
Rear suspension: Strut type coil spring stabilizer attaching
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R13
Rear wheel: 185/70R13
Min turn diameter, m: 5.1

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhite / Super White IIgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Dark blue mica metallicPurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P)Magenta / Red micaSilverRed / Super Red IIBlueDark cyanPearlGold
