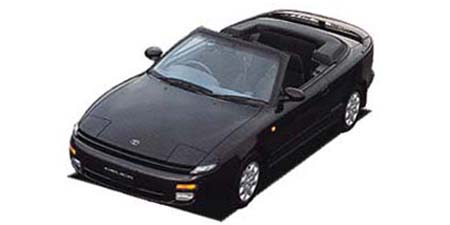

TOYOTA CELICA CONVERTIBLE

TOYOTA CELICA

ST183C · CONVERTIBLE

Description

Modification: CONVERTIBLE
Chassis ID: ST183C
Dates releasing: 1991.8~
Base price, ¥: E-ST183C
Body size: 4480x1690x1325
Interior (LxWxH): 1585x1410x1090
Wheelbase: 2525
Track f/r: 1465mm/1430mm
Full weight, kg: 1400
Body type: Open
Doors / seats: 2 door / 4

Safe equipment

Driver's air bag: ◯
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 3S-GE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 86.0x86.0
Engine size, cc: 1998
Compression ratio: 10.1
Fuel injection: EFI
Max power, hp/rpm: 165ps(121kW)/6800rpm
Max torque, Nm/rpm: 19.5kg m(191.2N m)/4800rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60R14 87H
Rear wheel: 205/60R14 87H
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.285	2.041	1.322	1.028	0.820	—	—	—	3.153

Available colors

blackwhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Super Red IIBlueDark cyanPearlGold
