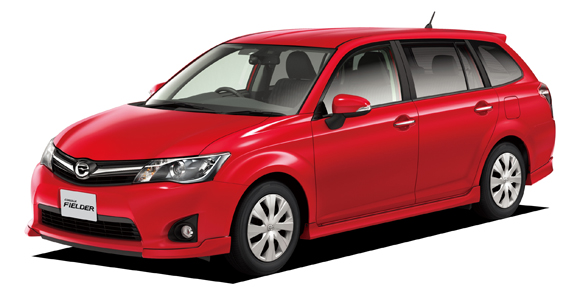

TOYOTA COROLLA FIELDER 1.8S AEROTOURER

TOYOTA COROLLA FIELDER

ZRE162G · 1.8S AEROTOURER

Description

Modification: 1.8S AEROTOURER
Chassis ID: ZRE162G
Dates releasing: 2012.5~
Base price, ¥: DBA-ZRE162G
Body size: 4360x1695x1465
Interior (LxWxH): 1945x1430x1200
Wheelbase: 2600
Track f/r: 1470mm/1465mm
Full weight, kg: 1160
Body type: Wagon
Doors / seats: 5 door / 5

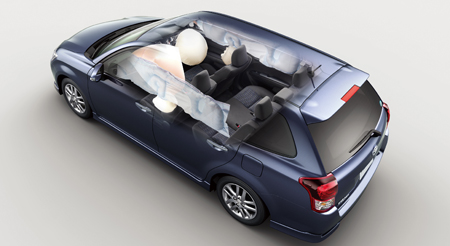

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×

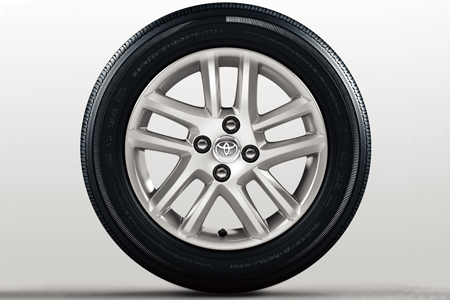

Alloy wheels: Option settings YES

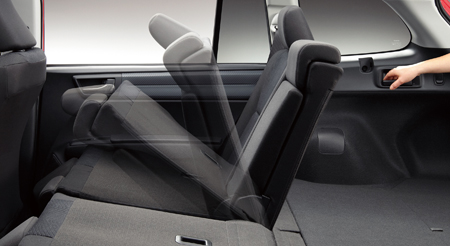

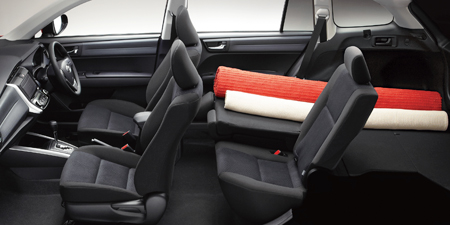

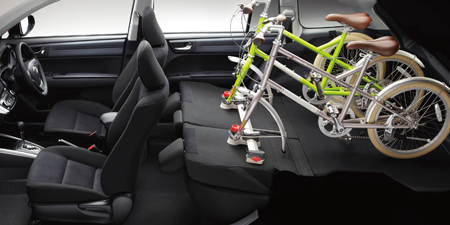

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2ZR-FAE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 80.5x88.3
Engine size, cc: 1797
Compression ratio: 10.6
Fuel injection: EFI
Max power, hp/rpm: 140ps(103kW)/6200rpm
Max torque, Nm/rpm: 17.5kg m(172N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 42 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum

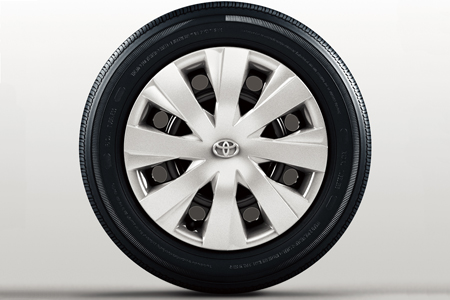

Front wheel: 185/60R15 84H
Rear wheel: 185/60R15 84H
Min turn diameter, m: 4.9

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.411	—	—	—	—	—	—	—	—	2.505~1.680

Available colors

black / black micawhite / Super White IIgreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Super Red VBlue / Other BlueDark cyanPearlGold
