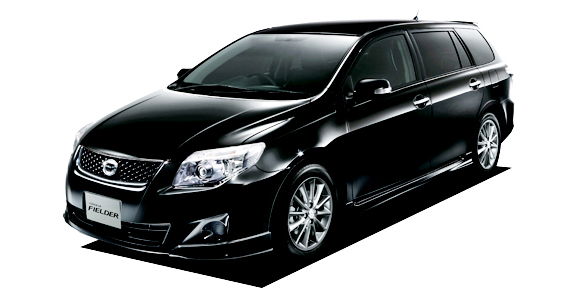

TOYOTA COROLLA FIELDER S 202

TOYOTA COROLLA FIELDER

ZRE144G · S 202

Description

Modification: S 202
Chassis ID: ZRE144G
Dates releasing: 2010.4~
Base price, ¥: DBA-ZRE144G
Body size: 4420x1695x1490
Interior (LxWxH): 1950x1440x1205
Wheelbase: 2600
Track f/r: 1480mm/1465mm
Full weight, kg: 1320
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 2ZR-FAE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 80.5x88.3
Engine size, cc: 1797
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 133ps(98kW)/6400rpm
Max torque, Nm/rpm: 16.7kg m(164N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 195/65R15 91S
Rear wheel: 195/65R15 91S
Min turn diameter, m: 5.2

Gearbox

Number of stages: CVT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ✓
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.386~0.411	—	—	—	—	—	—	—	—	2.505

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
