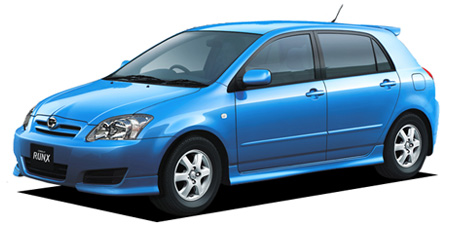

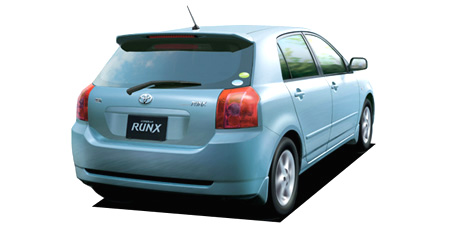

TOYOTA COROLLA RUNX S

TOYOTA COROLLA RUNX

ZZE122 · S

Description

Modification: S
Chassis ID: ZZE122
Dates releasing: 2004.4~
Base price, ¥: CBA-ZZE122
Body size: 4175x1695x1470
Interior (LxWxH): 1910x1430x1230
Wheelbase: 2600
Track f/r: 1480mm/1460mm
Full weight, kg: 1120
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ◯
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ◯
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1ZZ-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 79.0x91.5
Engine size, cc: 1794
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 132ps(97kW)/6000rpm
Max torque, Nm/rpm: 17.3kg m(170N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R14 88S
Rear wheel: 185/70R14 88S
Min turn diameter, m: 5.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.847	1.552	1.000	0.700	—	—	—	—	2.343

Available colors

black / black micawhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Light blue metallicMagenta / Other MagentaSilver / Silver metallicRed / Super Red IIBlue / Other BlueDark cyanPearlGold
