TOYOTA COROLLA SPACIO BASEGRADE

TOYOTA COROLLA SPACIO

AE111N · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: AE111N
Dates releasing: 1997.1~
Base price, ¥: E-AE111N
Body size: 4135x1690x1620
Interior (LxWxH): 2260x1415x1310
Wheelbase: 2465
Track f/r: 1460mm/1450mm
Full weight, kg: 1220
Body type: MV 1Box

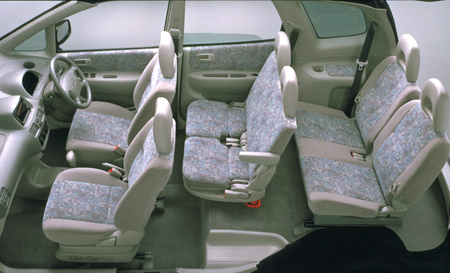

Doors / seats: 5 door / 6

Safe equipment

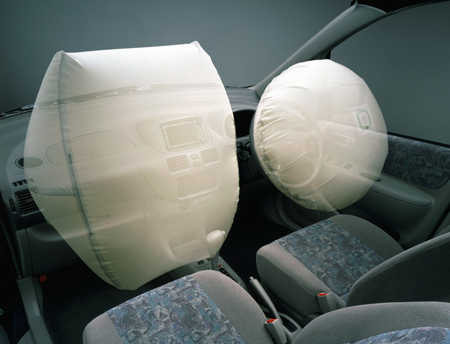

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×

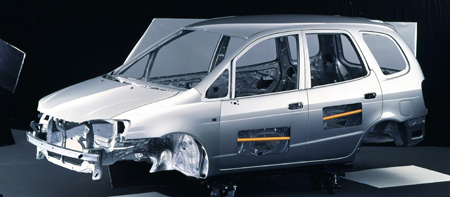

Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings NO
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 4A-FE
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 81.0x77.0
Engine size, cc: 1587
Compression ratio: 9.5
Fuel injection: EFI
Max power, hp/rpm: 110ps(81kW)/5800rpm
Max torque, Nm/rpm: 15.2kg m(149.1N m)/4600rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/65R14 86S
Rear wheel: 185/65R14 86S
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.005	2.208	1.425	0.981	—	—	—	—	3.272

Available colors

blackwhite / Super White IIgreen / Dark green mica metallicMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Red mica metallicBlueDark cyan / Other Dark cyanPearlGold
