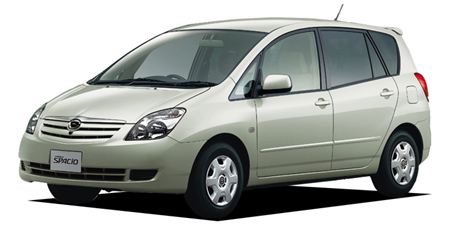

TOYOTA COROLLA SPACIO X EXTRA SELECTION

TOYOTA COROLLA SPACIO

ZZE124N · X EXTRA SELECTION

Description

Modification: X EXTRA SELECTION
Chassis ID: ZZE124N
Dates releasing: 2004.2~
Base price, ¥: CBA-ZZE124N
Body size: 4275x1695x1620
Interior (LxWxH): 2400x1485x1270
Wheelbase: 2600
Track f/r: 1480mm/1460mm
Full weight, kg: 1320
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: 1ZZ-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 79.0x91.5
Engine size, cc: 1794
Compression ratio: 10.0
Fuel injection: EFI
Max power, hp/rpm: 125ps(92kW)/6000rpm
Max torque, Nm/rpm: 16.4kg m(161N m)/4200rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Double wishbone type Coil spring
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 185/70R14 88S
Rear wheel: 185/70R14 88S
Min turn diameter, m: 5.2

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ◯
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.847	1.552	1.000	0.700	—	—	—	—	2.343

Available colors

blackwhite / Super White IIgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Silver metallicRedBlueDark cyanPearlGold / Other Gold
