JDM Vehicle Catalog

Vehicle Specs

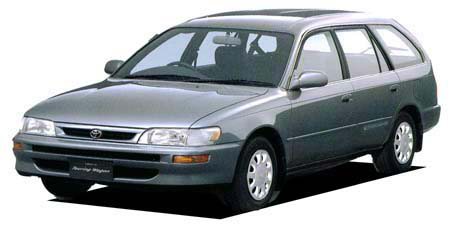

TOYOTA COROLLA TOURING WAGON L TOURING LIMITED

TOYOTA COROLLA TOURING WAGON

AE100G · L TOURING LIMITED

Description

Modification: L TOURING LIMITED
Chassis ID: AE100G
Dates releasing: 1996.5~
Base price, ¥: E-AE100G
Body size: 4265x1685x----
Interior (LxWxH): 1785x1420x1185
Wheelbase: 2465
Track f/r: 1470mm/1460mm
Full weight, kg: ----
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 5A-FE
Type: water cooling inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 78.7x77.0
Engine size, cc: 1498
Compression ratio: 9.8
Fuel injection: EFI
Max power, hp/rpm: 100ps(74kW)/5600rpm
Max torque, Nm/rpm: 14.0kg m(137.3N m)/4400rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165SR13
Rear wheel: 165SR13
Min turn diameter, m: 4.8

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.545	1.904	1.233	0.885	0.725	—	—	—	3.250

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
