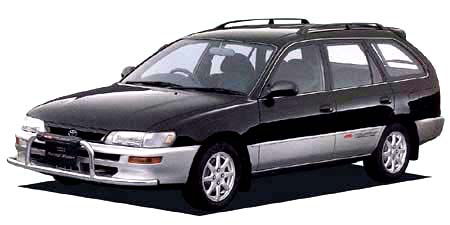

TOYOTA COROLLA TOURING WAGON L TOURING LIMITED

TOYOTA COROLLA TOURING WAGON

CE100G · L TOURING LIMITED

Description

Modification: L TOURING LIMITED
Chassis ID: CE100G
Dates releasing: 1996.10~
Base price, ¥: KD-CE100G
Body size: 4265x1685x1460
Interior (LxWxH): 1785x1420x1185
Wheelbase: 2465
Track f/r: 1470mm/1460mm
Full weight, kg: ----
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 2C-?
Type: water cooling inline 4 cylinder OHC (Diesel)
Bore x stroke, mm: 86.0x85.0
Engine size, cc: 1974
Compression ratio: 23.0
Fuel injection: ボッシュ type 分配型噴射ポンプ
Max power, hp/rpm: 73ps(54kW)/4700rpm
Max torque, Nm/rpm: 13.2kg m(129.4N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 50 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 165SR13
Rear wheel: 165SR13
Min turn diameter, m: 4.8

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
